This lab will introduce you to the tools with which you will be working this semester. Your task is fairly simple. You will construct a Java program that draws an image resembling a roadside warning sign, but with a message more appropriate for a computer screen, as shown below.
First you will need to determine the Java commands required to draw such a picture. Then you will write a Java program that draws and modifies the picture in simple ways in response to actions the user performs with the mouse.
To help you learn the primitives for creating graphical objects from
within a program before dealing with the details of writing a program,
we have constructed an environment in which you can experiment
interactively with the graphics primitives. This environment is a
program that lets you create and modify objects by clicking buttons
and filling in fields that describe the locations and dimensions of
the objects. If you think of this program as a drawing program (like
Adobe Illustrator) you will quickly conclude it is the worst drawing
program in the world. Its interface is designed specifically to use
mechanisms similar to those you will use from within your programs,
and certainly not for usability as a drawing program. Hence its name:
NotPhotoshop.
This part of the lab involves two steps: (i) completing a tutorial on
NotPhotoshop and (ii) using it to draw your own rendition of our
"no clicking" sign.
To start, you must log in to one of the iMac computers in our lab.
Begin by entering the user name and password that you were provided
for your computer science account in the login window and click "Log
in". Once you log in, the screen should display a window containing
icons for some of the files you can access on the machine.
Before proceeding, you should change the password we assigned to your
account to something that only you will know and that will be easier
for you to remember. Don't, of course, make your new password too
easy to guess. In particular, at least use something that is a mix of
letters and numbers.
To change your password you should:
Now, log out and log in again with your new password. To log out
select the last item, "Log Out" in the apple menu near the upper
left corner of your screen. Click "Log Out" when it asks if you are sure.
The files you create for our course laboratory projects will not actually
be stored in the computer on which you are working. Instead, they will
be stored on our department's file server. By entering
the account information for your account, you have instructed the computer
you are using to access your files on that server. You can access your
files from any computer in our lab by simply logging in to
that computer.
Next observe that there is already a folder labeled "CS51Workspace"
on the desktop for your cs51 work. This is where you will do all
of your work for this class.
To work on the lab, you will need to move some files from the course
folder (named "cs051", with a small black arrow in the lower left corner)
to your CS51Workspace folder.
Go to your CS51Workspace folder and double click on "Lab1-NotPhotoshop". There should be an item named "NotPhotoshop.jar". To run NotPhotoshop, double-click on that item. Our drawing program will display a large window on your screen that should look like this:
The components in this window are divided into five main units.
To see how all these components work, let's add an object to the
display.
You can begin by specifying the object type. The type of object to be
created is controlled by the pop-up menu located just to the right of
the word "new" in the constructor area. By default, the program
starts with the "FramedRect" item selected in the menu. If you
depress the mouse on the box labeled "FramedRect", a list of the
other choices will appear. Six options are available:
Using the mouse, select "Line" instead of "FramedRect". As you do
this, notice that the labels on the text entry boxes to the right of
the menu change to reflect the kinds of information you need to
enter to specify the appearance of a line rather than a rectangle.
For a framed rectangle you need to enter the coordinates of its upper
left corner and its width and height. For a line you need to enter
the coordinates of two points -- its end points. Use the menu to
select other options to see what information they require. To display
a piece of text you enter the text to be displayed (although the box
for entering the text is rather small) and the coordinates of the
upper left corner of the rectangle in which the text should be placed.
Ovals require the same input as rectangles; the values that you enter
for an oval define rectangular bounds within which the oval is drawn.
To continue, make sure that "FramedRect" is the selected menu item.
Fill in the boxes to the right of the menu with values to create a
100x100 rectangle at a location 70 pixels from the top of the drawing
area and roughly centered between the left and right boundaries of the
drawing area. To determine the actual x value to enter for this
rectangle, position the mouse cursor where you estimate the left edge
of the rectangle should be and use the "mouse meter" to determine
the x coordinate of that point. Enter this value in the box labeled
"x" immediately to the right of the menu. Then enter 70 as the
"y" coordinate and 100 for both the width and height.
Once all these values have been entered, press the "Construct"
button and the rectangle will appear.
When your rectangle appears, it is "decorated" with small black
boxes on the edges and corner, indicating that it is the "selected"
graphical object. By default, the most recently
constructed object will be selected. When multiple objects are
displayed, you can change the selected object by clicking within the
object you wish to select.
The buttons below the object construction controls can be used to
modify the currently selected object. For example, if your rectangle
isn't positioned quite where you wanted it, you can move it around
using the "move" and "moveTo" buttons. To try this out:
If you enter any invalid information, a brief message will be
displayed in the output area, and the dialog box will remain on the
screen so that you can correct the error. Common errors include
entering non-numeric characters in numeric fields or leaving fields
blank.
As with object construction, the text shown in the "move" dialog box
is designed to resemble the text you would include in a program if you
wanted to instruct the computer to move an object.
If you press "moveTo", you will be asked to specify new coordinates
for the origin of the selected object. In the case of a rectangle,
the rectangle will be moved so that its upper left corner is placed at
the specified point. The "setWidth" and "setHeight" buttons
invoke methods that let you change the dimensions of an object. They
display a dialog box in which you must enter the new value to be used
for the dimension being changed. Of course, it is not possible to set
the width or height of a Line. If you try to use setWidth or
setHeight while a Line is the selected object, the program will simply
display a complaint in the output area.
There is one other button that allows you to change the appearance of
an object after it is created. If you find your black rectangle
boring, you can easily change its color by pressing the "setColor"
button. To do this:
The dialog that appears when you use the setColor button does not attempt to present a display that mimics what you would use to change the color of an object from within a program. The conversion, however, is simple. The items within the dialog box are each a color name preceded by the word "Color". If "selected" is the name of an object whose color you want to change to yellow, then within your program you would just type
selected.setColor(Color.yellow);
Later in the semester, you will see how to select colors other than the small set with which names are associated.
After you have moved an object up and down a few times to get it right
where you want it, you may not actually know where it is. That is,
you may not know the exact coordinates of its upper left hand corner
or remember its dimensions. Luckily the computer knows and will tell
you if you press the correct buttons. The "getLocation" button near
the right end of the top row of buttons will display the x and y
coordinates of the upper left corner of any object (except a Line).
Try it. The coordinates will be displayed in the output area.
Similarly, the "getHeight" and "getWidth" buttons can be
used to determine the dimensions of such objects.
To determine the endpoints of a Line, you can use the "getEnd" and
"getStart" buttons. You can set the endpoints of a Line using the
"setEndPoints" button. Finally, you can determine the color of any
object by clicking on the "getColor" button.
As with the other buttons, these buttons correspond directly to
operations you can perform within a Java program. Within a few days,
we will discuss how information returned by these methods can be used
within a program.
The remaining method invocation buttons are relevant primarily when
you are working with a drawing composed of multiple overlapping
objects. To demonstrate, let's create another object.
Create an oval and position it so that it overlaps with
your rectangle.
If you entered all the coordinates and dimensions properly, then the image in your drawing area should look something like this:
The new oval is now the selected object. Its bounding rectangle is decorated with eight small black boxes.
You can now use the mouse to change the selected object.
In addition to being selected, a new object (like the oval) is located
logically "on top of" previously created objects (like the rectangle).
Notice that where the rectangle's left edge overlaps the oval, all you
see is the black interior of the oval, obscuring that part of the
rectangle. Since the oval is logically above the rectangle, it hides
that part of the edge of the rectangle.
There are buttons in the program's controls corresponding to two
methods you can use within a program to alter the logical stacking of
graphical objects. They are labeled sendBackward and
sendForward. To see how they change the stacking:
When multiple objects overlap, you may need to use the "send"
buttons to change the selected object. If you can't click on the
object you would like to select because it is obscured by another
object, first select the other object and use "sendBackward" to move
it beneath the object you wish to select. Then click to select the
object you desire.
You can think of each object as being drawn on a separate, large sheet
of transparent plastic and the image you see is produced by stacking
all these sheets of plastic. Changing the stacking is like pulling
out the selected sheet of plastic and moving it up or down
the stack. This stacking happens even if the objects do not
overlap on the screen. Try this:
There are two ways to make an object no longer appear in the canvas:
hiding the object and removing the object from the canvas. Hiding the
object makes it invisible, but a subsequent "show" operation will make
it visible once more. Removing the object permanently removes it from
the canvas. We discuss only hiding in today's lab. While both of these
options will be available to you when you write programs, only hide
and show can be accessed using NotPhotoshop.
So, let's see what happens if we hide the oval. To do this:
You are now ready to construct a rendition of the no-clicking sign
shown at the beginning of this document. The interior of the sign
should be colored yellow like a good warning sign. To
produce such a sign you will use a "FilledRect" for the sign's
background and a "FramedRect" for the edge. If you run into
problems, ask your instructor or a teaching assistant for help.
When you are done, DO NOT QUIT THE DRAWING PROGRAM!
You will need the picture you have created for the next
task.

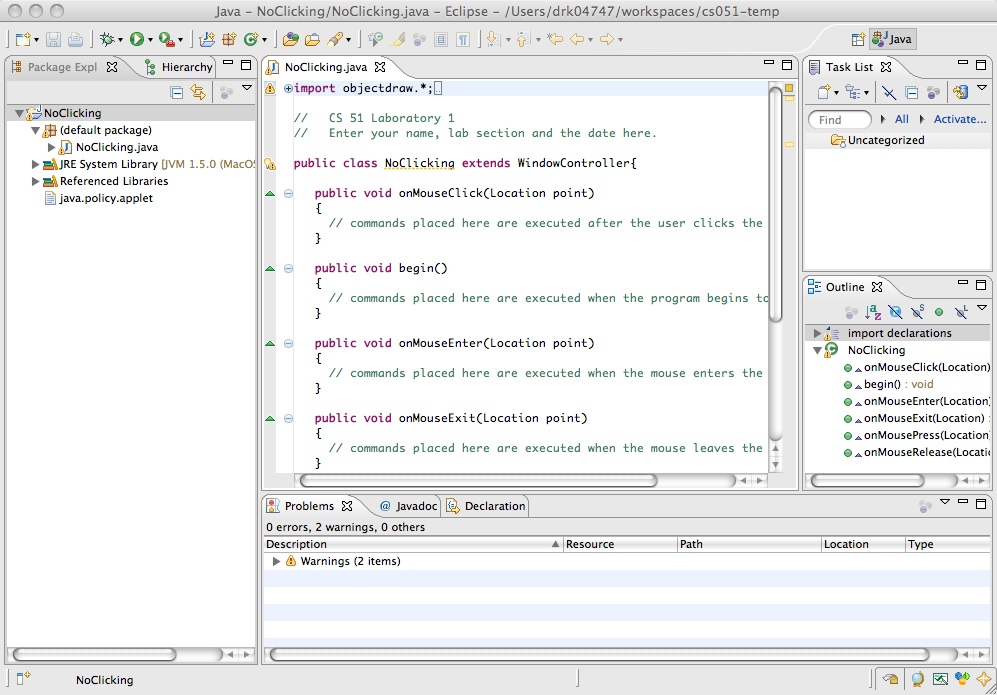

Now, you will construct a Java program to draw the warning sign you
have constructed. You will do this using a program named Eclipse
which provides everything you need to type in and run Java programs.
The construction of a single Java program involves the use of several
files. One file will contain Java code, the actual text of your
program. Another file is required to tell the Java system run time
details like the size of the window your program should be given.
In addition, access to many of the
facilities of Java and our graphics system are provided through
other files, including "objectdraw.jar".
First, you must start Eclipse by clicking on the Eclipse icon
at the bottom of the screen.
The first time that you run Eclipse, it may ask you what folder you want
to use as the "workspace" where it stores files it needs. If it asks, tell
it to use the folder "CS51Workspace" on your desktop.
In the Eclipse window, pull down the "File" menu and select
"Import..." from near the bottom of the menu. Select "Existing
Project into Workspace" and click the "Next" button. [You may have to
click on the triangle next to "General" to see the "Existing Project ..." entry.]
Now, click
the "Browse" button to the right of the "Select root directory"
entry, and navigate to your CS51Workspace folder. (Hint: double-click on
"Desktop" if you seem lost.). Click on CS51Workspace and then on
"Lab1-NotPhotoshop". Select the
"NoClicking" folder and then push "Choose." Make sure the
box to the left of "NoClicking"
under projects is checked, and then push the "Finish"
button.
On the left side of the Eclipse window, in an area called the
"Package Explorer" you should now see an entry for "NoClicking".
Click once on the triangle to the left of "NoClicking" and then once
on the triangle to the left of "(default package)". Then
double-click on "NoClicking.java". At this point your Eclipse
window should look similar to the image shown
below.
This window has three main regions. On the left, it displays the
names of files and their contents in an outline form. The item of
interest here is the file in which you will place your Java code,
"NoClicking.java". You will not need to change the other items
listed.
The large area on the top right side of the screen displays the contents
of "NoClicking.java" file. The text of the program as it
should initially appear is shown
below:
import objectdraw.*; import java.awt.*; // CS 51 Laboratory 1 --- practice program // Enter your name, lab section and the date here. public class NoClicking extends WindowController{ public void onMouseClick(Location point) { // commands placed here are executed after the user clicks the mouse } public void begin() { // commands placed here are executed when the program begins to execute } public void onMouseEnter(Location point) { // commands placed here are executed when the mouse enters the program window } public void onMouseExit(Location point) { // commands placed here are executed when the mouse leaves the program window } public void onMousePress(Location point) { // commands placed here are executed when the mouse button is depressed } public void onMouseRelease(Location point) { // commands placed here are executed when the mouse button is released } }
The text we have placed in
"NoClicking.java" is the skeleton of a complete Java program. It
includes the header for the definition of a class NoClicking
that extends WindowController and within the class, headers for
the event handling methods you will use. We have not, however,
included any Java commands within the bodies of these methods, only a
Java comment that reminds you when the Java system will follow any
instructions you might add to the method body.
You should follow our lead and begin writing your program by typing
comments rather than actual Java commands. Near the top of the file
we have included a temporary comment telling you to enter your name,
lab section and the current date. Such identifying comments are
always good practice, and in a class like this they make the grader's
job much easier. Eclipse provides the familiar
capabilities of a typical word processor or text editor. You can
position the cursor using the mouse or arrow keys. You can enter text
and/or cut and paste text using items in the edit menu. Use these
features to replace our comment with your name, etc.
Next, you will add Java instructions to the body of the onMouseClick
method that will draw a "no clicking" warning sign. This is the
first method skeleton we have included in "NoClicking.java".
As a first step, let's add the single instruction needed to draw the
rectangle that frames the contents of the sign. The form of the
command you will need to enter is:
new FramedRect( ..., ..., ..., ..., canvas);
where all the ...'s need to be replaced by the numbers describing the
position and size of the rectangle. This line should be placed
immediately after the comment line in onMouseClick (i.e., just
before the line containing the "}" that ends the method body).
If you remember all the values that should replace our dots, just type
them in where we have shown the dots. Otherwise, you can return to
the NotPhotoshop program you used in the first part of the lab to
determine the values:
Use Eclipse to add a new FramedRect command to your program
with the appropriate values.
As you type this code, you will discover that Eclipse tries to
understand what you are typing as you type it. After typing,
FramedRect, it will have a squiggly line under it. When you type the
"(", Eclipse will automatically provide the ")" and the squiggly
line will go away. If you make a mistake entering the parameters for
FramedRect, the entire line will be underlined and an icon will appear
in the left margin indicating there is an error on that line. If you
move the mouse over this icon and leave it there for a second, a
message will pop-up describing the error. If the icon is
, you can then click on the icon and another
message will appear that offers choices on how to fix the error. If
one of these looks like a change you would like to make, you can
double click on it and Eclipse will make the change for you. (If the
icon is
, there are no automatic corrections
available, but it will still show you a message describing the
problem.) Understanding these messages will get easier as the
semester progresses.
Take your time when Eclipse reports errors. First, errors often occur simply
because you are in the middle of doing something and these errors go away
when you complete the task. So, it is generally a good idea to ignore the
warnings that come up while you are editing. Second, read the messages
carefully. They often have good advice. (But not always! Computers are
often not very smart in the ways we'd like them to be!) Third, before selecting a change to be applied
automatically, make sure you understand Eclipse's suggestion. If you
don't understand it, it's probably not the right thing to do! Ask an
instructor or lab assistant for help.
Your rectangle constructor should now be below the comment in the
onMouseClick method. Now that it does something, it would be a good
idea to update the comment in the onMouseClick method to say
what it does so far. Replace our comment with something more
appropriate, like "draws a rectangle when the mouse is clicked".
You should get in the habit of updating comments to keep them as
accurate as possible as you add instructions to your programs. Not
only does this mean you will not have to go back and add comments when
you're done, it will help you to remember what everything does as you
are writing your programs.
By the way, I prefer to see comments in the line above the method
header. I put them in the body here just so it would be clearer that
the code goes between the "" and "" after the method header.
Please move the comments to the line before each method.
Before running your program, make sure Eclipse has not found any
errors. Save your program by selecting "Save" from the "File"
menu. Eclipse now performs even more checks than it does as you are
typing. If it finds any problems, it will display them in the
"Problems" area at the bottom right of the screen (you may have to
click on the tab) and also put an icon in the left margin on lines
that have errors. If the problem list is not empty, fix the problems
that Eclipse has found (for now you can ignore the warning that
says "The input java.awt is never used." It may disappear while
you're coding; can you figure out what line of your code caused the
change?).
Once all the problems are fixed, you can run your program. Before
running the program the first time, you should create a configuration
to run as follows:
Note that you only need to create a configuration the first time.
Thereafter, you can run your program by clicking on the icon of a
white triangle in a green circle that appears in the icon list at the
top of the Eclipse window.
Make sure to save changes before trying to run, otherwise you'll get
assorted prompts from Eclipse.
When your program runs, a new window titled Applet Viewer:
NoClicking.class will appear on your screen. This is your program's
window. It should appear blank at first. Move the mouse into the
window and click, and a rectangle should appear because Java invokes
your onMouseClick method, which includes the instruction to
construct a rectangle. If this happens, smile. If not, select
"Quit" from the "Applet" menu to leave your program. This will
bring you back to Eclipse. Examine the instructions you typed
carefully to see if you can find any mistakes. If so, correct them
and select "Run" again. Otherwise, ask your instructor or a lab
assistant for help.
When you ask Eclipse to "Run" your program, it starts up a new
applet program that is separate from the Eclipse application. While
this program is running, you can return to Eclipse by just clicking on
any portion of the Eclipse window that is visible on your screen.
However, to avoid confusion, it is a good idea to "Quit" the old
copy of your program that Eclipse created before asking Eclipse to
"Run" your program again and create a new copy.
Once your rectangle program is working, you should add more
instructions to it to turn it into a complete warning sign drawing
program. Back in Eclipse, immediately beneath the line you added
to draw the rectangle, add additional lines to create new
Text(...), a new FramedOval(...) and all the other components
you created using our NotPhotoshop program. In the NotPhotoshop
version of the drawing, we told you to have a yellow background for
the sign. Leave that part out of the version your program draws for
now; we will add it later. Again, you may want to refer back to
NotPhotoshop's "getLocation" and related method buttons to help you
figure out the coordinates and dimensions to use for each object. As
you work, it is a good idea to "Run" your program every time you add
a line or two to ensure that you catch mistakes early. Also, make
sure your comment line gets updated by the time you are finished.
When you are done, your program should draw a sign when you click in
the window, and then do nothing until you tell it to quit. In reality,
the program draws another copy of the sign each time you click, but
you can't tell, as each new sign is drawn exactly on top of the
previous one.
Now, to explore event handling methods a bit more, revise your program
so that it reacts to the mouse in more interesting ways. In the
revised version, the sign will be drawn as soon as the program begins
to run. The sign will change, however, as the program runs. In
particular, when the user moves the mouse into the program window or
presses the mouse, your revised code will alter the appearance of the
sign.
Making the program draw the sign when it first starts is easy. You
initially placed the code to draw the sign in the onMouseClick
method. There is a skeleton for a method named begin immediately
after the onMouseClick method definition in the
"NoClicking.java" file. As you might guess, the instructions in
begin are followed when your program first begins to run. Use cut
and paste to move all the drawing instructions from the
onMouseClick method into the begin method. Don't forget to
update your comments. Run your program again. It should now display
the sign even if you don't click the mouse.
Notice that it makes more sense logically to have the begin
method occur before the onMouseClick method. We arranged
them in the opposite order so that you would be able to find
onMouseClick more easily. The point is that the computer
does not care which order you write them in your program. Only the
names are important (though we urge you to put them in a logical order
so that it will be easier for all of us to read!). The order of
instructions within a method is important, but the order in which you
define the methods within the program is not.
Making the sign change in response to the mouse is a bit trickier.
Suppose, for example, that you want to emphasize the sign's warning by
changing the color of the word "CLICKING" from black to red when the
user moves the mouse into the program's window. As you saw in
NotPhotoshop, there is a setColor operation that you can use to
change the color of the text. There is also an obvious place to tell
Java to make this change. The onMouseEnter method is executed
whenever the mouse moves into your
program window. Placing an appropriate setColor in that method
would do the trick.
The problem is that you can't simply say setColor in the
onMouseEnter method. If that was all you said, Java would have no way of
knowing which of the several objects' color to change. It could
change the rectangle, the oval, the text, all of them, etc. Your code
has to be more specific and identify the object that should change.
To be able to specify the text object as the object whose color we
wish to set, we will have to give it a name. We will use the name
message, but we could use any name that seems appropriate.
Associating a name with an object requires two steps. First, we have
to include a line that declares or "introduces" the name. This line
informs Java that we plan to use a particular name within the program.
At this point, we don't need to tell Java which object it should be
associated with, but we do need to specify which sort of object it will
eventually be associated with. We plan to associate the name
message with an object created as new Text, so we have to tell
Java that the name will be associated with a Text object. The
form of a Java declaration is simply the name being declared preceded
by the keyword private and by the type of object with which it
will be associated. So, the form for our declaration is:
private Text message;
You should add a line containing this declaration to your program immediately before the heading of the onMouseClick method.
Now you have to tell Java which object to associate with the name message. Your program currently contains a construction of the form:
new Text("CLICKING", ..., canvas);
that creates the text on the screen. To associate the name message with the text object this line creates, revise this line so that it looks like:
message = new Text("CLICKING", ..., canvas);
This is an example of a construct called an assignment statement. It tells Java that in addition to creating the new object, it should associate a name with it. Shortly, you will convert some of your other constructors into assignments.
Now that the text has a name, we can use the name to change its color. Within the body of the onMouseEnter method add the line:
message.setColor(Color.red);
Then, run your program (correcting any errors as needed).
The program isn't quite complete. It draws the sign immediately and
makes the text turn red when the mouse enters the window, but it
doesn't make the text black again when the mouse is moved back out of
the window. You should be able to figure out what to add to make it
black when the mouse exits. Give it a try.
To get more practice using names and other event handling methods, we
would like you to modify your program a bit more. First, change the
program so that while the user is depressing the mouse button, the
circle with the diagonal line through the text disappears. (Of
course, it should reappear when the mouse is released.) This will
require that you declare names for the circle and the line and
associate them with the correct objects. These declarations should
appear right after the declaration of message. Your code to
make the objects disappear and reappear goes in the onMousePress
and onMouseRelease methods. You can use the hide and
show methods to handle the disappearing and reappearing.
Finally, add the yellow background to the sign. We didn't have you do
this earlier because we wanted to discuss associating names with
objects. Associate a name with the background rectangle when you
create it and then use the name to set its color to yellow. Think
carefully about where to put this code so that the shapes are
stacked in the right order.
In general, about half the points in each lab will be for correct functionality and the other half for the style you use in writing the program. This lab is worth 10 points, which are distributed as follows:
Value | Feature |
2 pts. | Drawing the sign correctly when the program starts |
2 pts. | Changing the color of the text correctly |
2 pts. | Making the slash and circle disappear and reappear correctly |
1 pt. | Meaningful names used in declarations |
1 pt. | Informative comments |
1 pt. | Good and consistent formatting |
1 pt. | Good choice of Java commands |
The last point is worth additional discussion. Often there are several Java commands that can be used to accomplish the same result. It is important to pick the most appropriate commands. For example, in this lab you could make your circle and slash disappear by sending them behind the background, but this would not be the best choice as it is not obvious what your intent is and there is a more direct way of accomplishing the same result.
Congratulations, you have written a Java program! You are encouraged to continue experimenting with it. Before you do, however, you should submit it as a completed assignment. The submission procedure is electronic and will be basically the same every week.
You can submit your work up to 11 p.m. on Monday night.
If you submit it and later discover that your submission was flawed, you
can submit again. We will grade the latest submission made before the
11 PM deadline. The computer may not let you submit again unless you
change the name of your folder slightly. It does this to prevent
another student from accidentally overwriting one of your submissions.
Just add something to the folder name (like the word "revised") and
the re-submission will work fine.
When you are done with your session, be sure to log out again by
selecting "Log Out" from the apple menu as you did earlier.
Please log out each time you leave as otherwise anyone who sits down
at the computer can get full access to all of your files.
