# 181U Spring 2020
### Hardware Communication

---
layout: true
.footer[
- Geoffrey Brown, 2020
- 181U
]

.smokescreen h1 {
    border-bottom: none;
}

  .small.remark-slide-content.compact {font-size:1.2rem}
  .smaller.remark-slide-content.compact {font-size:1.1rem}
  .small-code.remark-slide-content.compact code {font-size:1.0rem}
  .very-small-code.remark-slide-content.compact code {font-size:0.9rem}

.line-numbers{
  /* Set "line-numbers-counter" to 0 */
  counter-reset: line-numbers-counter;
}

.line-numbers .remark-code-line::before {
  /* Increment "line-numbers-counter" by 1 */
    counter-increment: line-numbers-counter;
    content: counter(line-numbers-counter);
    text-align: right;
    width: 20px;
    border-right: 1px solid #aaa;
    display: inline-block;
    margin-right: 10px;
    padding: 0 5px;
}

</style>

---
class: compact
# Agenda

* Serial
  - Examples
* SPI
  - Examples
* I2C
  - Examples
* Analog

---
class: compact

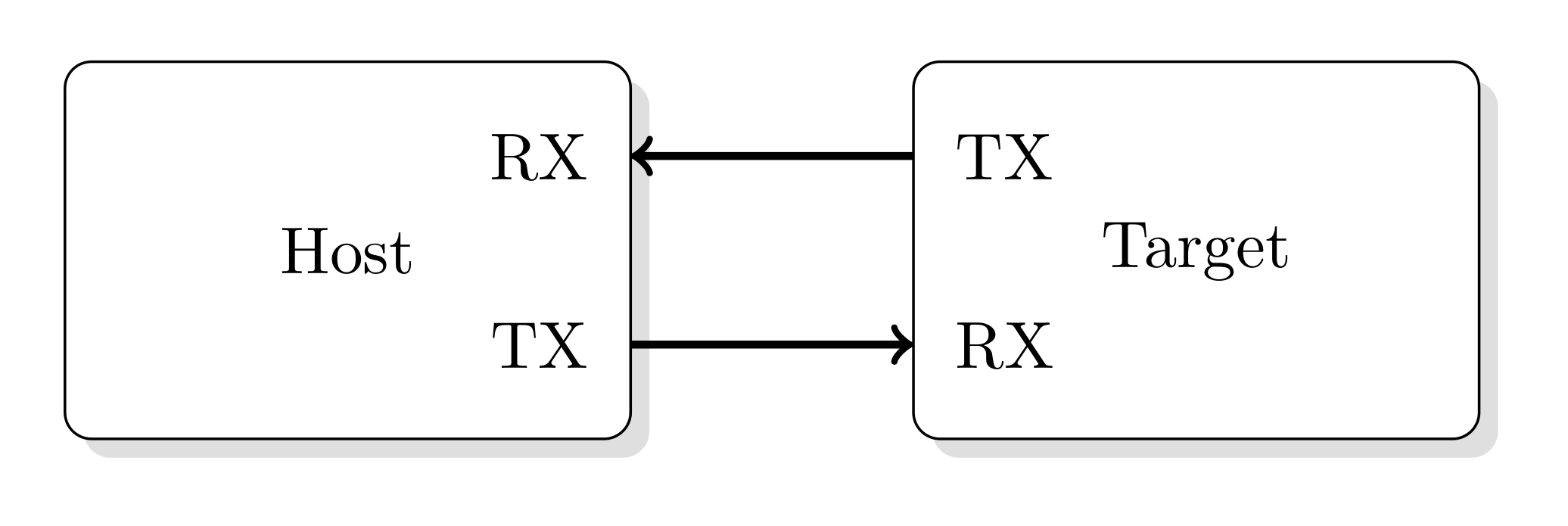

# Serial Protocol

![](images/serial-topology.png# w-40pct fr)

* Oldest protocol but still widely used.
* Depends upon local clocks to decode digital waveform
* Used for
    - UART (in lab, the serial interface is through a UART)
    - GPS receivers
    - Cell phone modules

![](images/space.png# w-20pct)

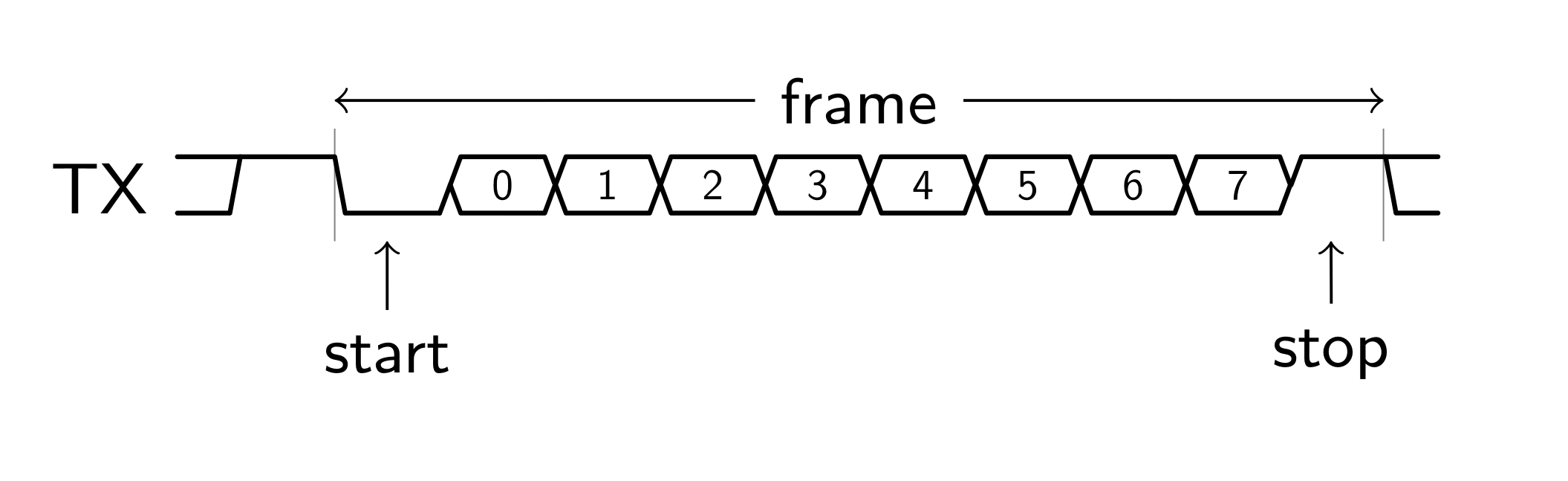

![](images/serial-frame.png# w-60pct)

---
class: compact

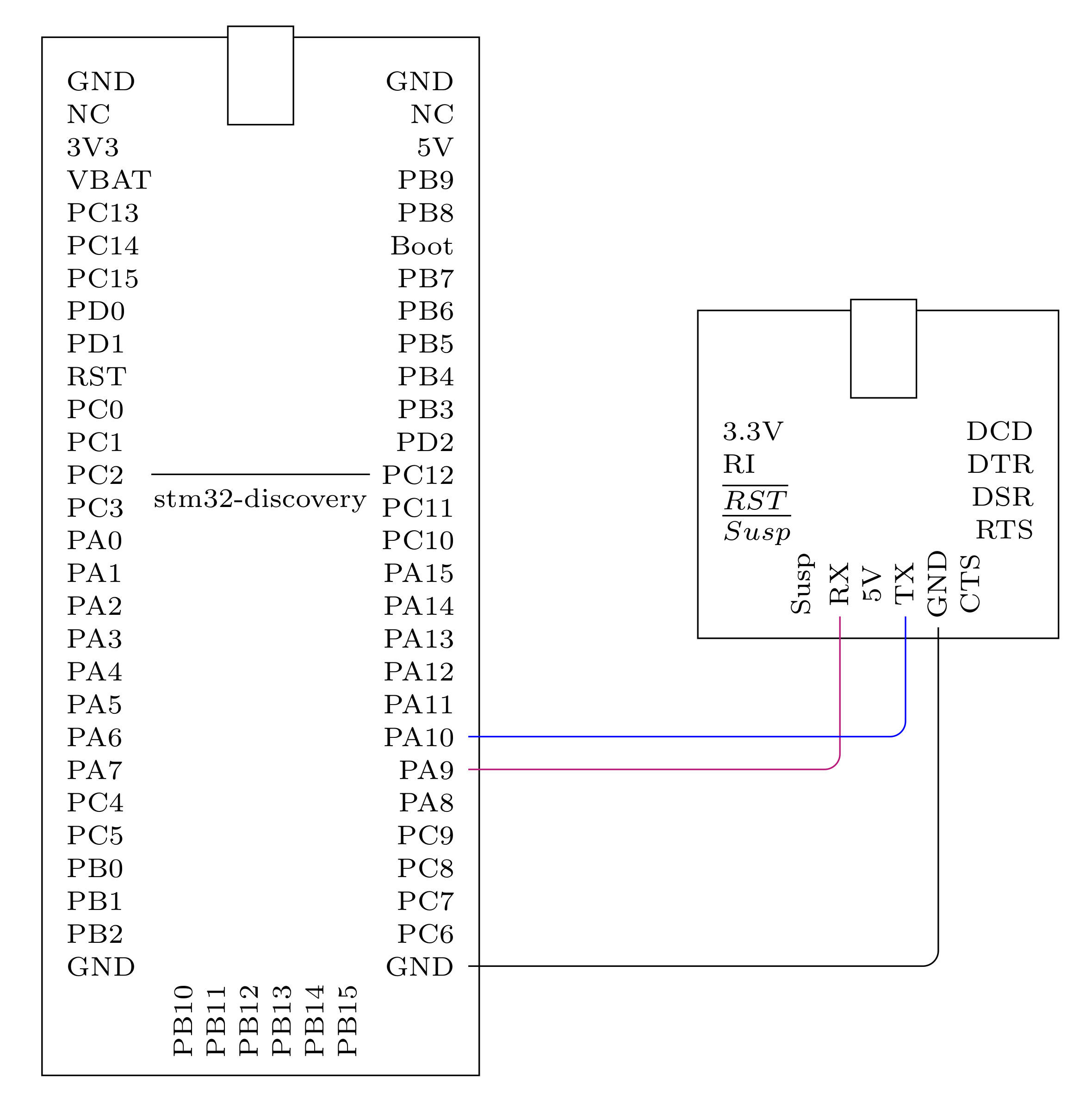

# Typical Configuration of Serial Device

![](images/space.png# w-30pct)
![](images/uart-wiring.png# w-40pct)

---
class: compact

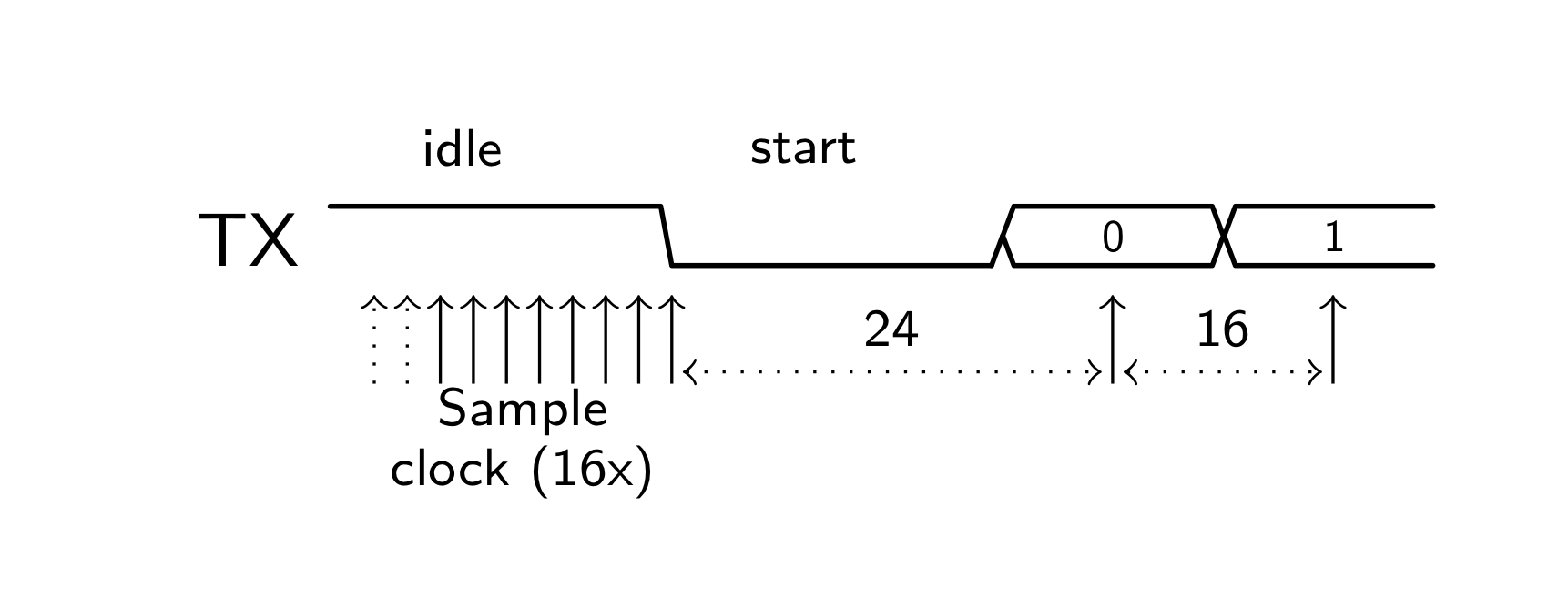

# Decoding Serial Protocol

![](images/serial-decoding.png# w-50pct fr)

* Sender and Receiver each have local clocks that are within ~2%
* Sender and Receiver programmed to use the same "baud rate"  (9600-115200 baud)
* Sender transmits a frame, making transitions at bit boundaries
    - frame has start bit (0), 8 bits, at least one stop bit (1)
* Receiver samples the input signal looking for a start bit
    - after seeing start bit, skip 1.5 baud times to bit 0
    - then skip 1 baud time for each bit

---
class: compact
# Serial Driver Software

* Serial (UART) hardware typically has
    - a send buffer
    - a receive buffer
    - a status register
    - a configuration register
* Driver
    - configures baud rate and protocol (configuration register)
    - sending
       - write one byte to send buffer
       - wait for byte to be transmitted (check status register)
    - receiving
       - wait for byte to be received
       - read byte from receive buffer
---
class: compact
# Serial Drivers (cont.)
* Two types of drivers
    - Polling  -- busy waiting.  This is **very** inefficient

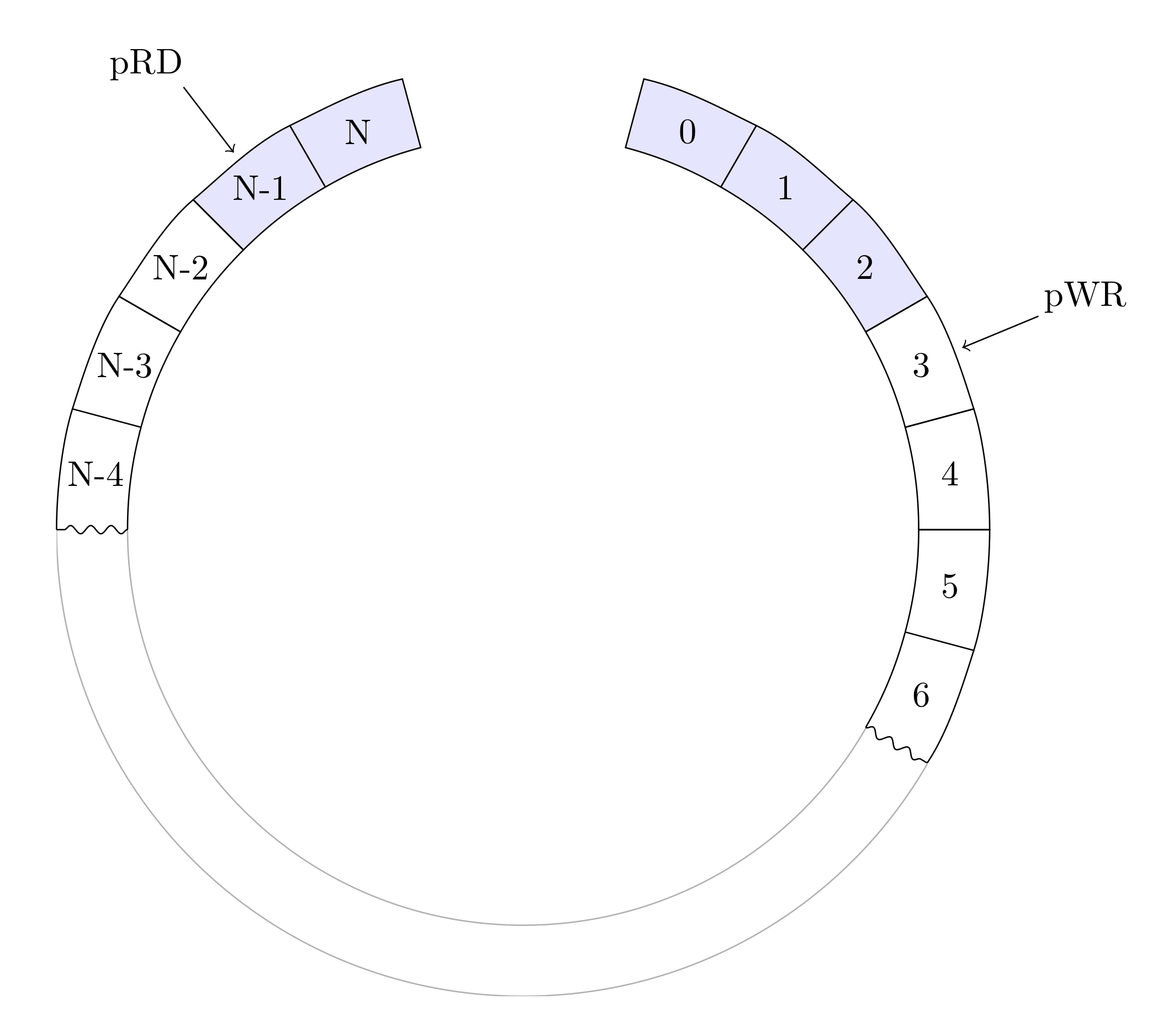

    - Interrupt driven -- interrupt handler keeps uart busy from queues fed/emptied by OS

![](images/space.png# w-20pct)

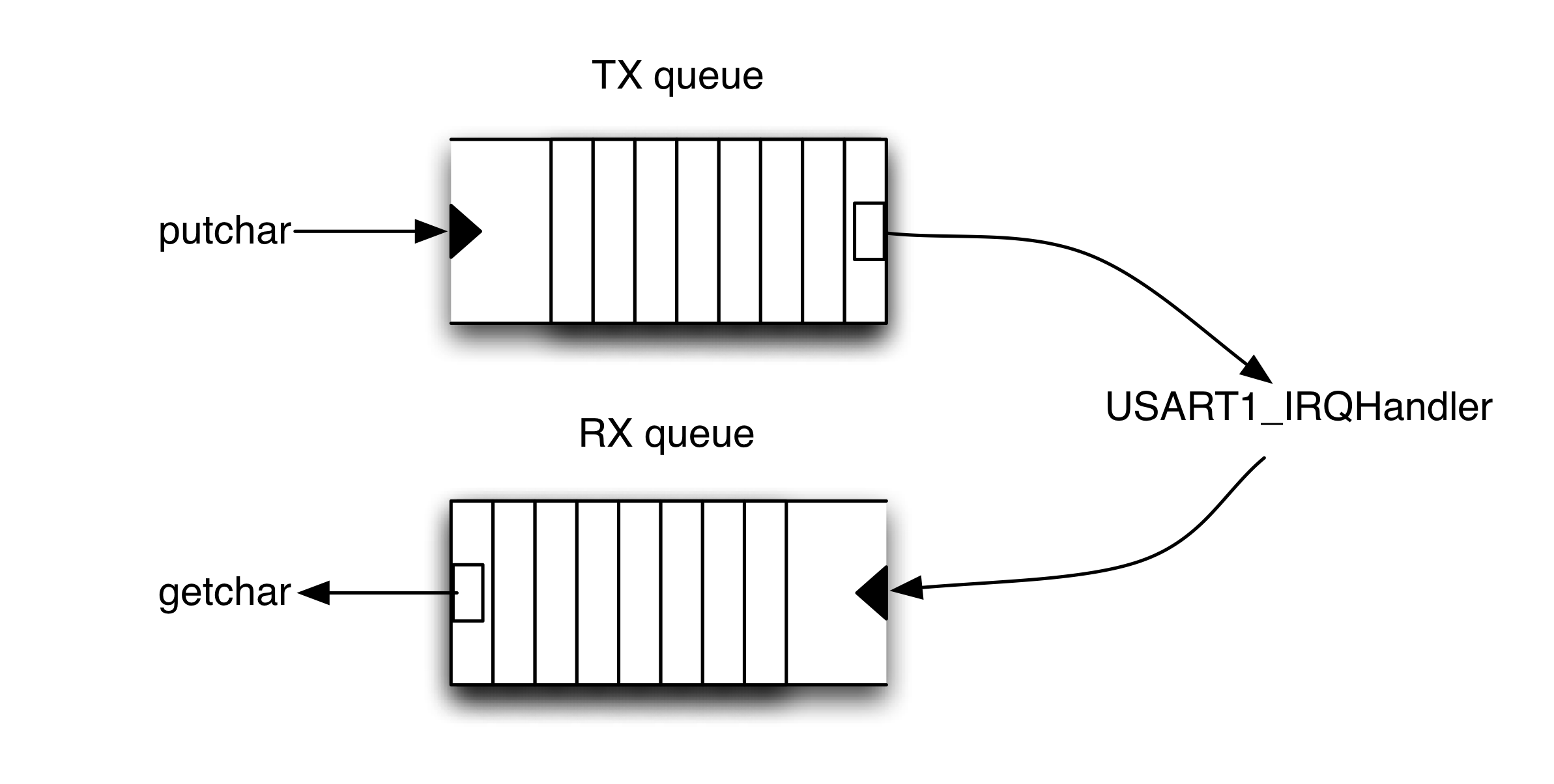

![](images/interrupt-queues.png# w-60pct)

---
class: very-small-code,compact,hljs-tomorrow-night-eighties,line-numbers,col-2
# UART Interrupt Handler

```C
void USART1_IRQHandler(void)
{
  if(USART_GetITStatus(USART1, USART_IT_RXNE) != RESET)
    {
      uint8_t  data;

// buffer the data (or toss it if there's no room
      // Flow control will prevent this

data = USART_ReceiveData(USART1) & 0xff;
      if (!Enqueue(&UART1_RXq, data))
        RxOverflow = 1;
    }
  ```
  <br>

```C
  if(USART_GetITStatus(USART1, USART_IT_TXE) != RESET)
    {
      uint8_t data;

/* Write one byte to the transmit data register */

if (Dequeue(&UART1_TXq, &data)){
          USART_SendData(USART1, data);
      } else {
          // if we have nothing to send,
          // disable the interrupt
          // and wait for a kick

USART_ITConfig(USART1, USART_IT_TXE, DISABLE);
          TxPrimed = 0;
      }
    }
}
```

---
class: very-small-code,compact,hljs-tomorrow-night-eighties,line-numbers
# Interrupt Driven UART User Code

![](images/circular-queue.png# w-50pct fr)

```C
int getchar(void)
{
  uint8_t data;
  while (!Dequeue(&UART1_RXq, &data));
  return data;
}

int putchar(int c)
{
   while (!Enqueue(&UART1_TXq, c));
   if (!TxPrimed) {
     TxPrimed = 1;
     USART_ITConfig(USART1, USART_IT_TXE, ENABLE);
   }
}
```

---
class: compact
# SPI

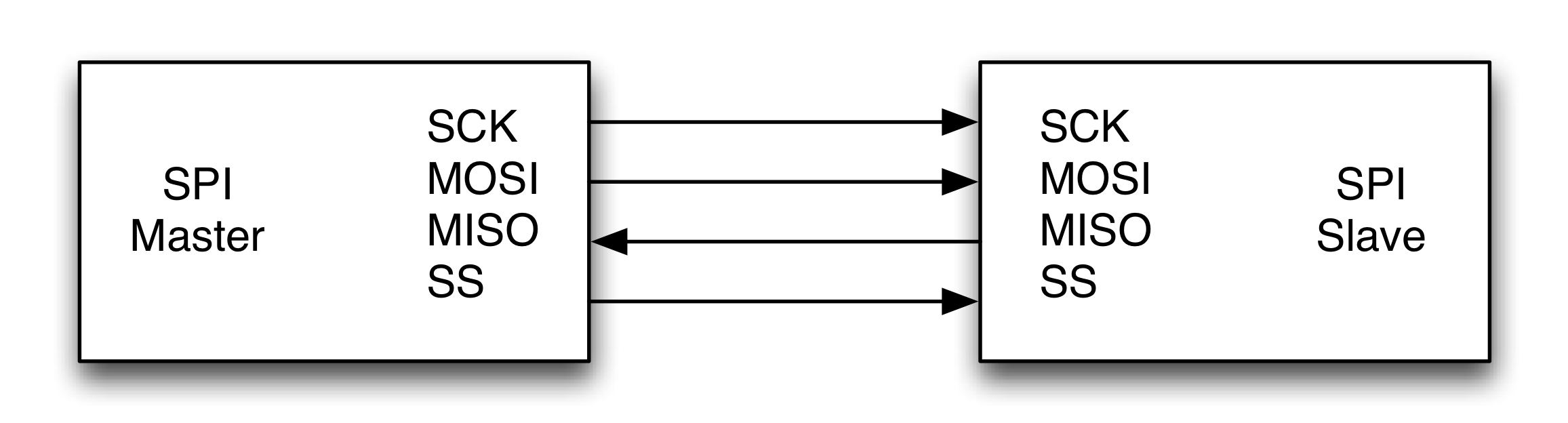

![](images/spi-topology.png# w-40pct fr)

* SPI is a point-to-point *synchronous* protocol with a single *master* and one or more *slaves*
* In contrast, the serial protocol is point-to-point *asynchronous* (but with a specified time base)
* Signals:
   - SCK : clock from master to slave
   - MOSI : data from master to slave ("Master Out Slave In")
   - MISO : data from slave to master ("Slave Out Master In")
   - SS : slave select (one for each slave)

---
class: compact
# SPI Logical Architecture

![](images/space.png# w-20pct)

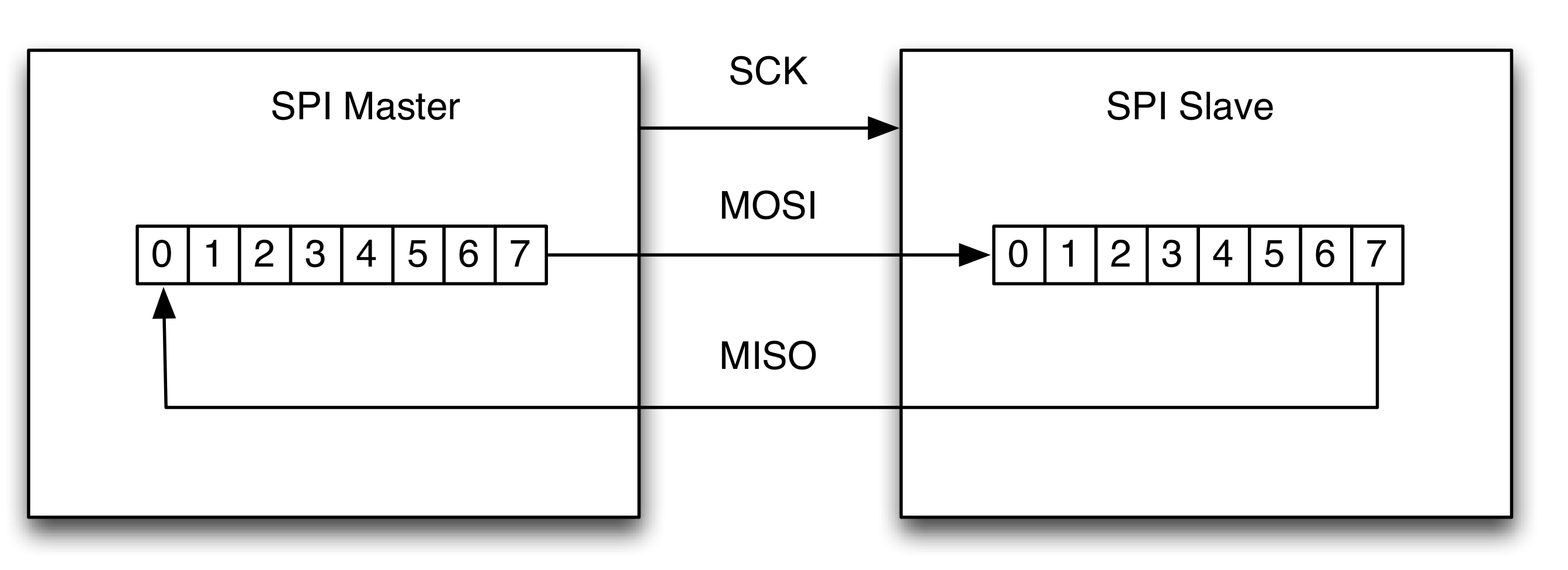

![](images/spi-logical.png# w-60pct)

* On every clock event (typically 0->1 transition), the Master and Slave registers are "shifted"

`master[0],master[1:7],slave[0],slave[1:7] = slave[7],master[0:6],master[7],slave[0:6]`

---
class: compact
# SPI Protocol

![](images/space.png# w-30pct)
![](images/spi-logical.png# w-40pct)

![](images/space.png# w-20pct)

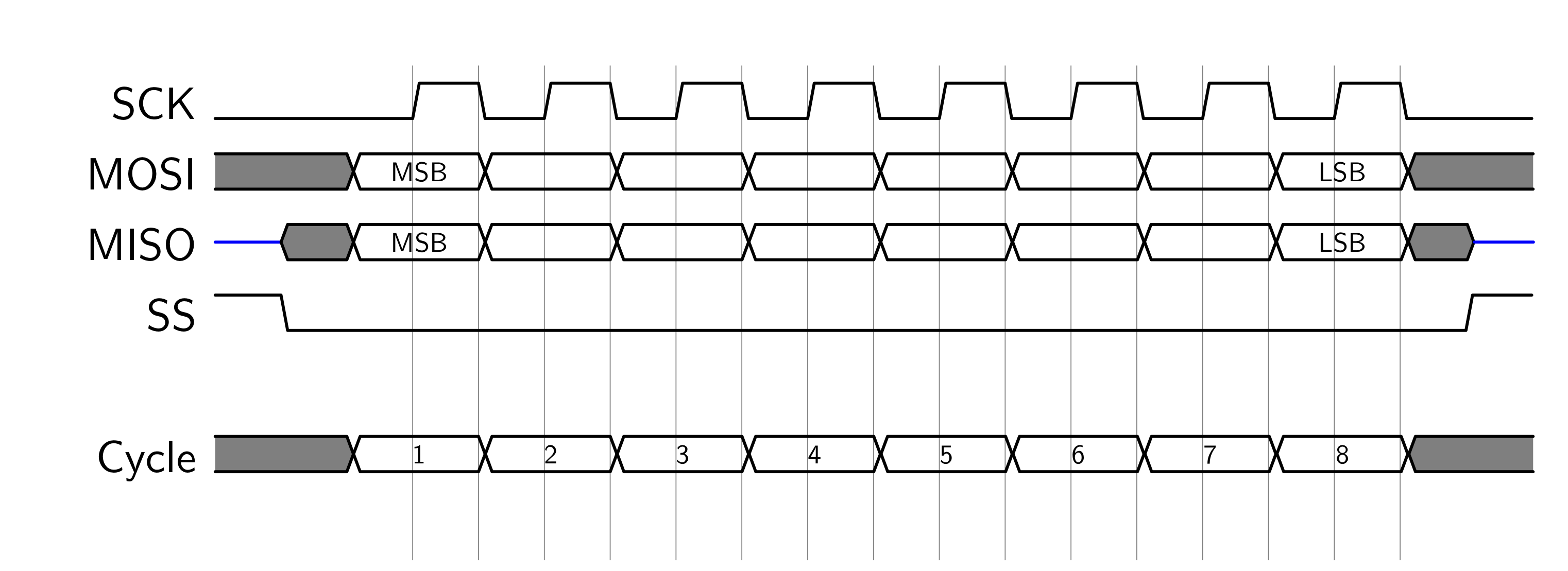

![](images/spi-timing.png# w-60pct)

---
class: compact
# SPI Example -- serial EEPROM (memory)

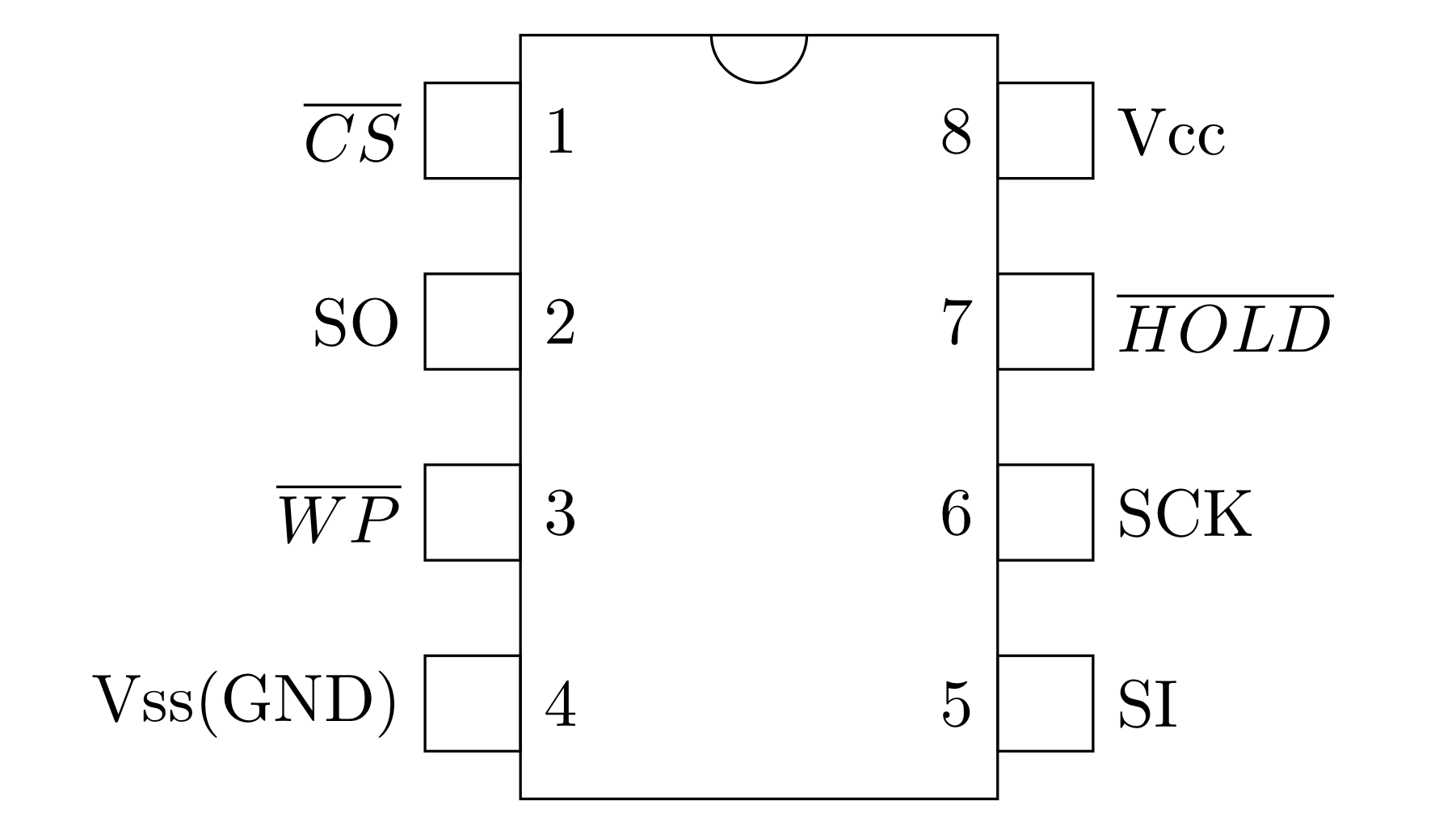

![](images/eeprom-pinout.png# w-20pct)
![](images/space.png# 40-pct)

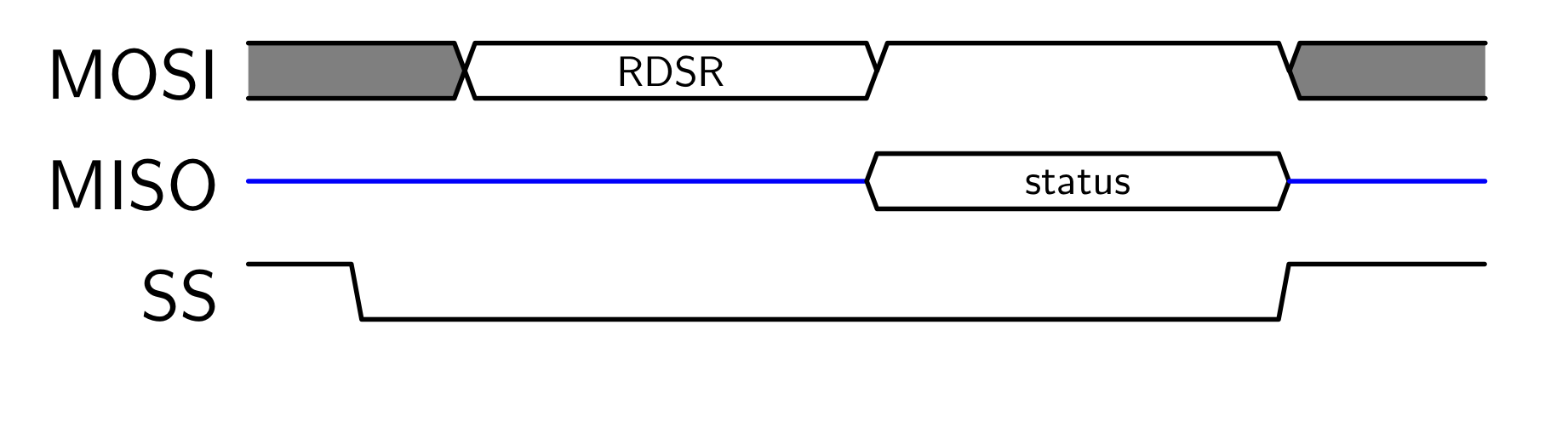

![](images/eeprom-read-status.png# w-30pct)

* SPI protocol implements byte (or word) transfer
* Every device has a message protocol implemented on top of this
* For example, with serial eproms, the master sends a command followed by 0xFF and the slave responds with a value

---
class: compact
# SPI Example -- color LCD display

![](images/space.png# w-30pct)

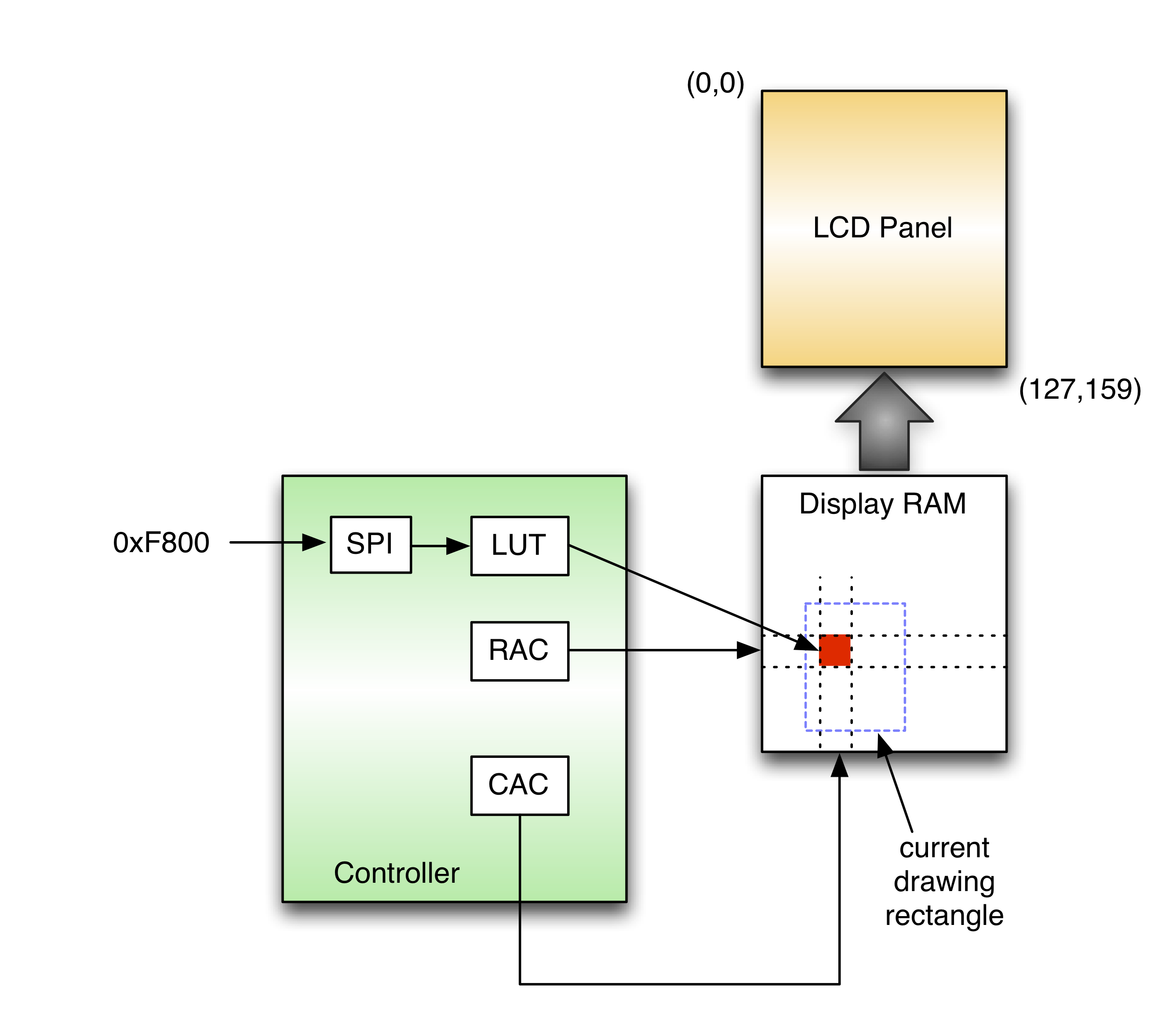

![](images/lcd-model.png# w-40pct)

---
class: compact

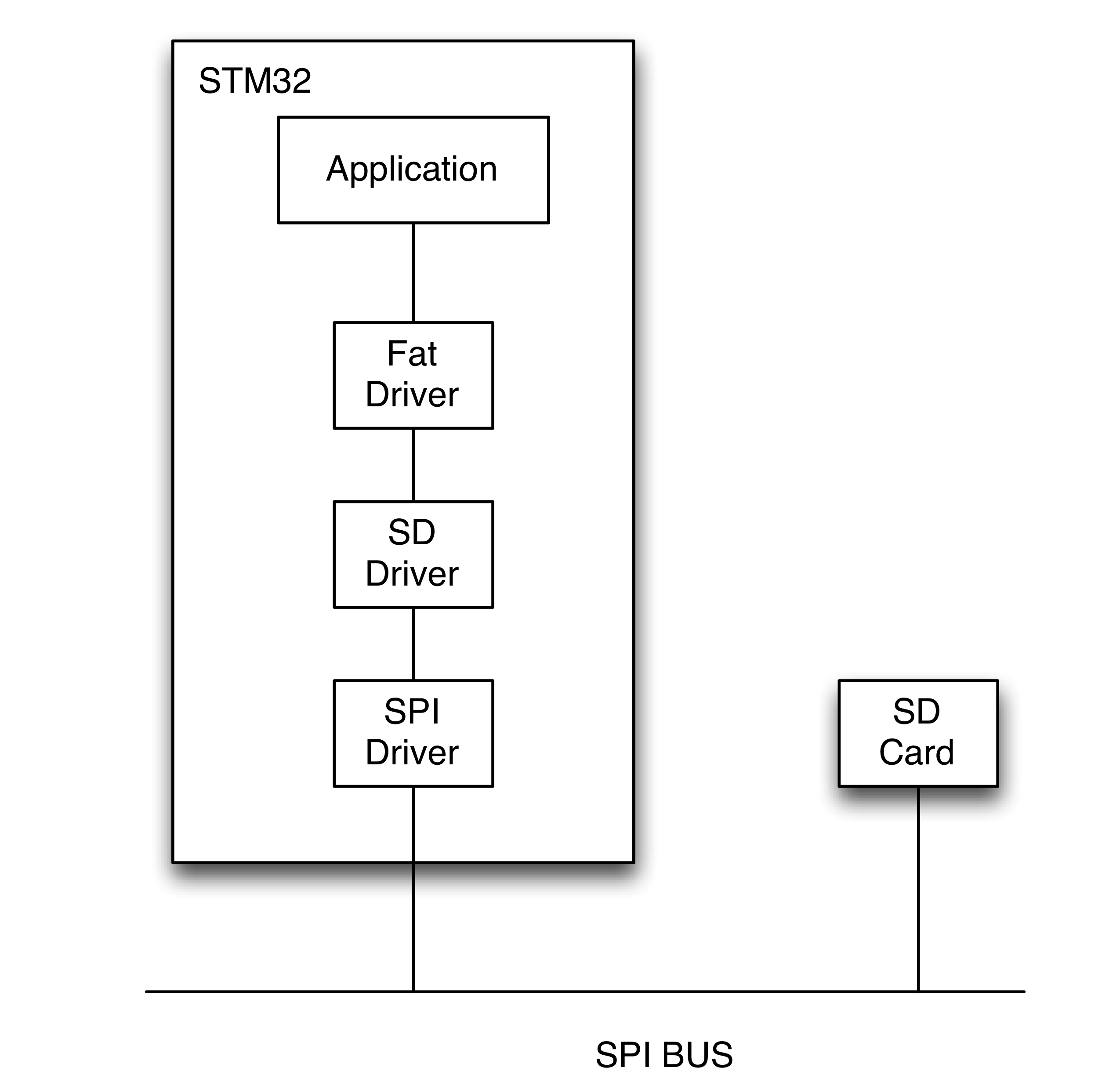

# SPI Example -- SD Card

![](images/space.png# w-30pct)
![](images/sd-card.png# w-40pct)

---
class: compact
# SPI Example -- SD Card Transactions

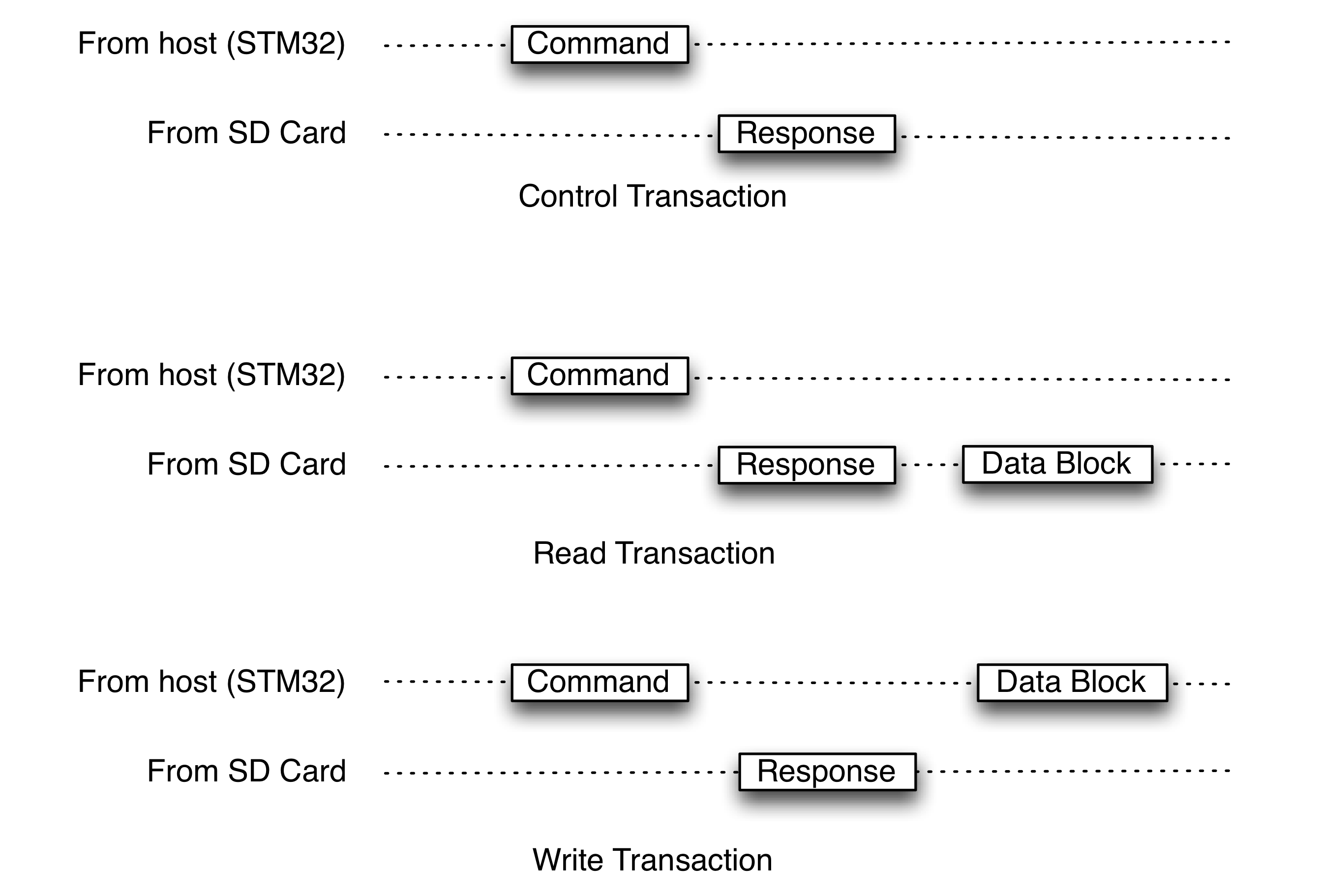

![](images/sd-transactions.png# w-50pct fr)

* CMD0 :  Reset the SD card
* CMD1 : Initialize the card
* CMD13 : Request card status
* CMD16 : Set block length
* CMD17 : Read single block
* CMD24 : Write single block

---
class: compact
# SPI Example -- Display/SD card reader

![](images/space.png# w-30pct)

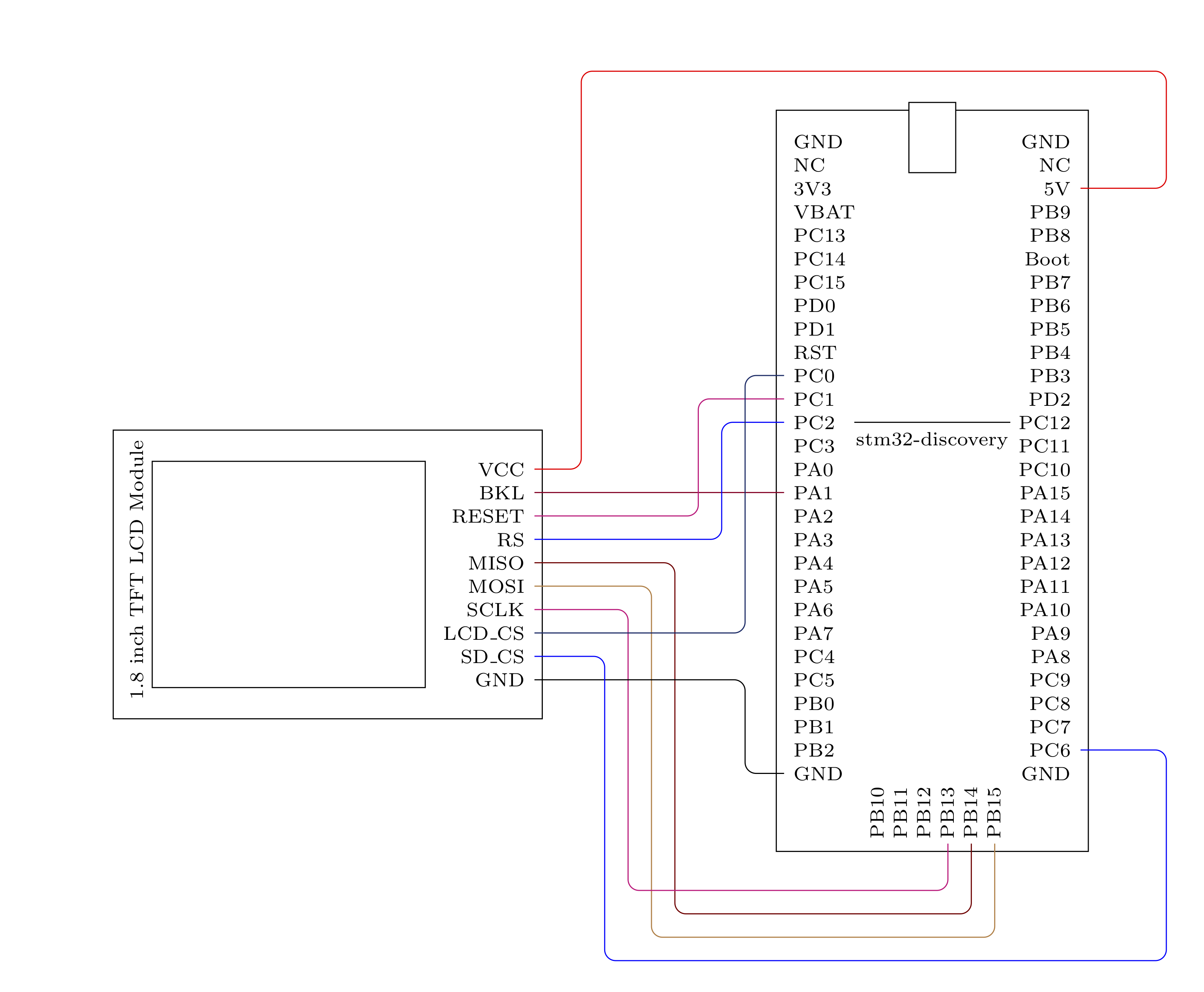

![](images/display-sd-module.png# w-40pct)

---
class: compact
# I2C -- 2 wire broadcast bus

![](images/space.png# w-20pct)

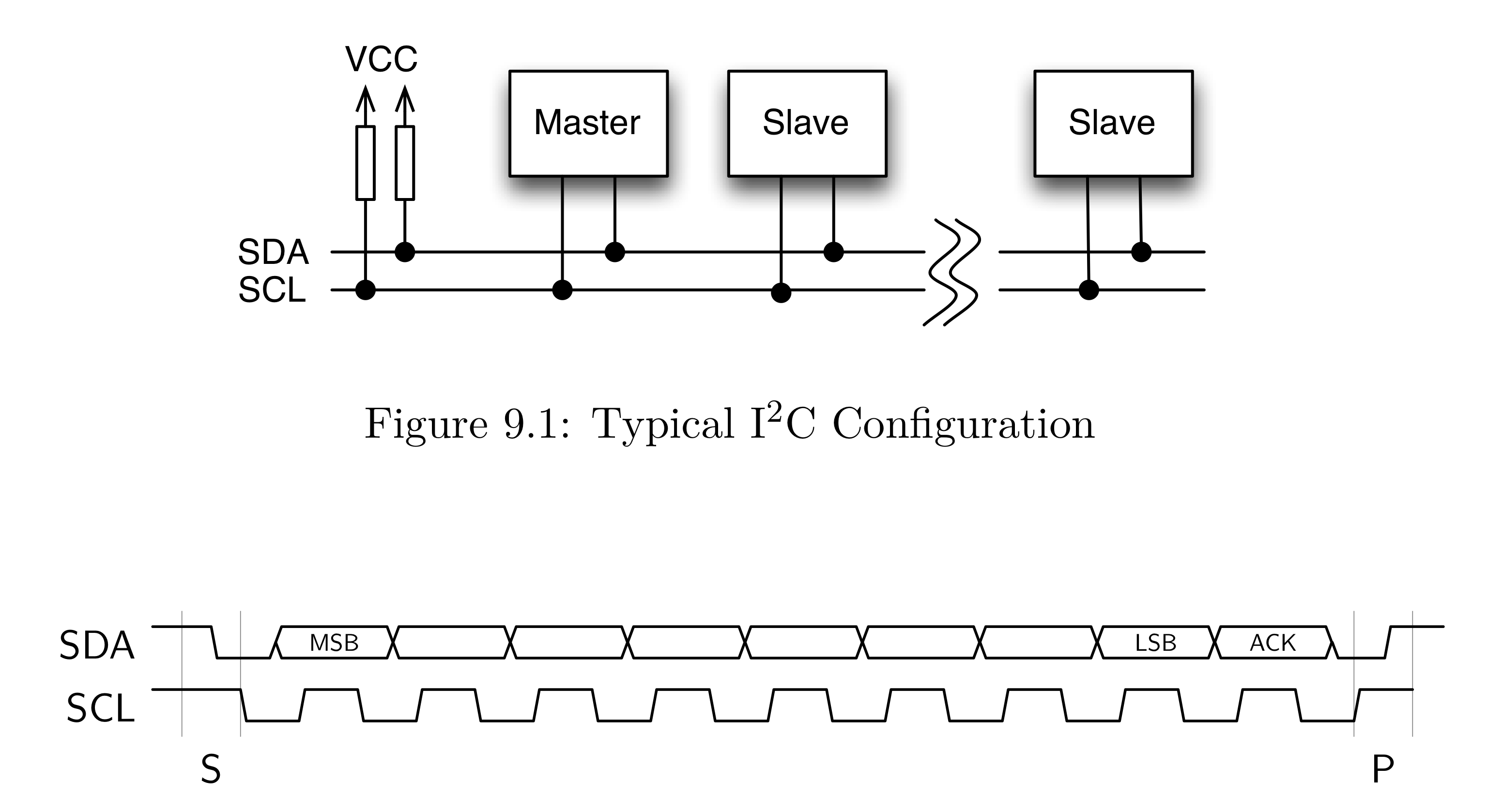

![](images/I2C-configuration.png# w-60pct)

---
class: compact
# I2C -- transactions

![](images/space.png# w-20pct)

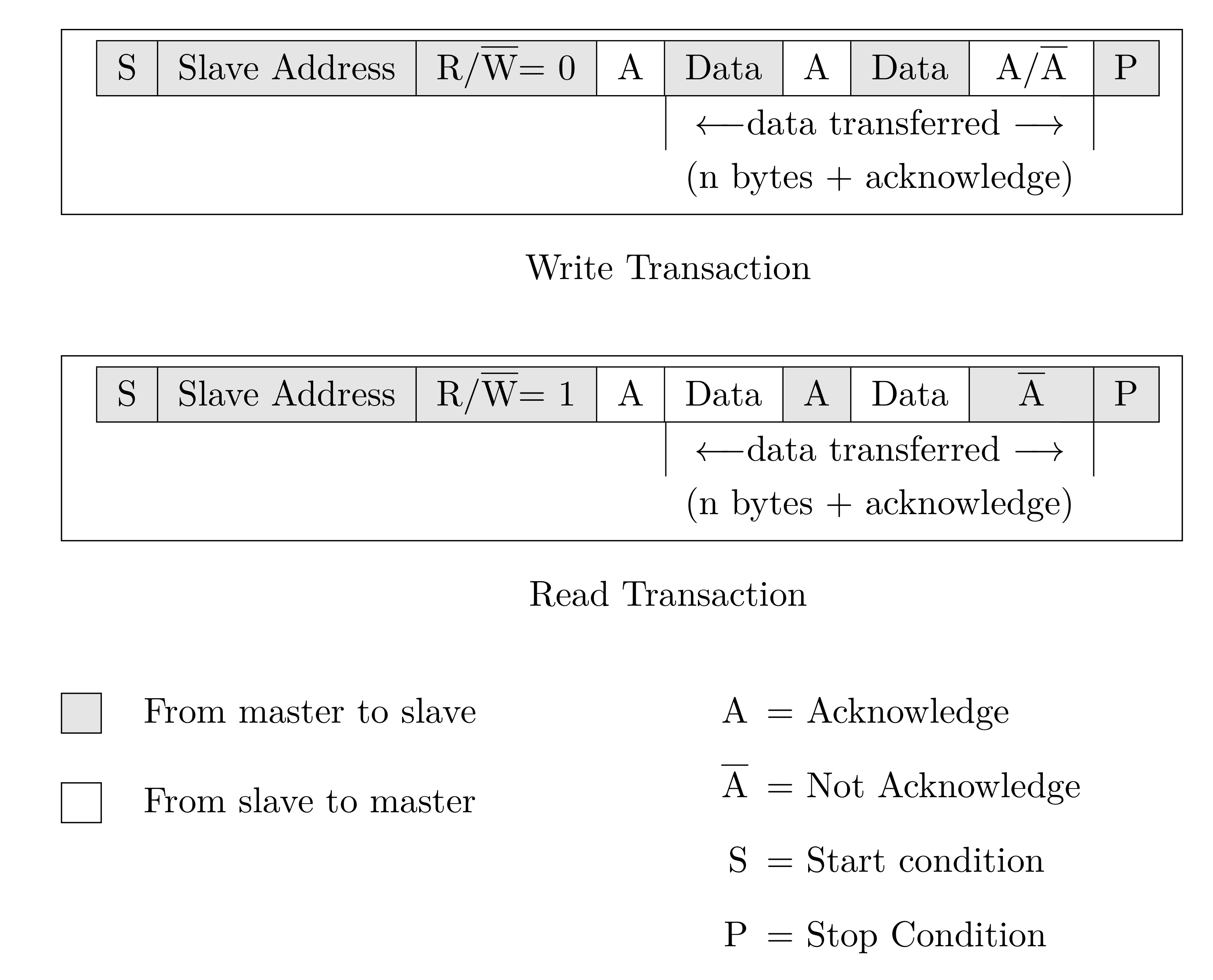

![](images/i2c-transactions.png# w-60pct)

---
class: compact

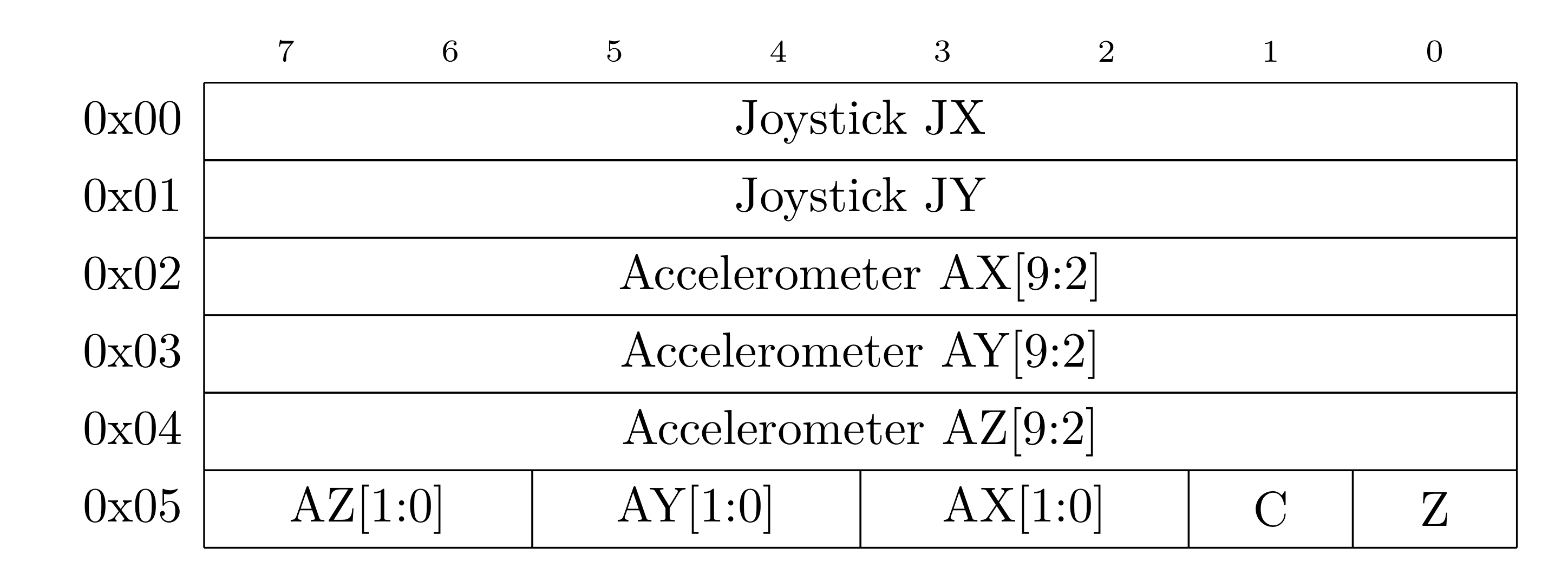

# I2C Example -- Wii Nunchuck

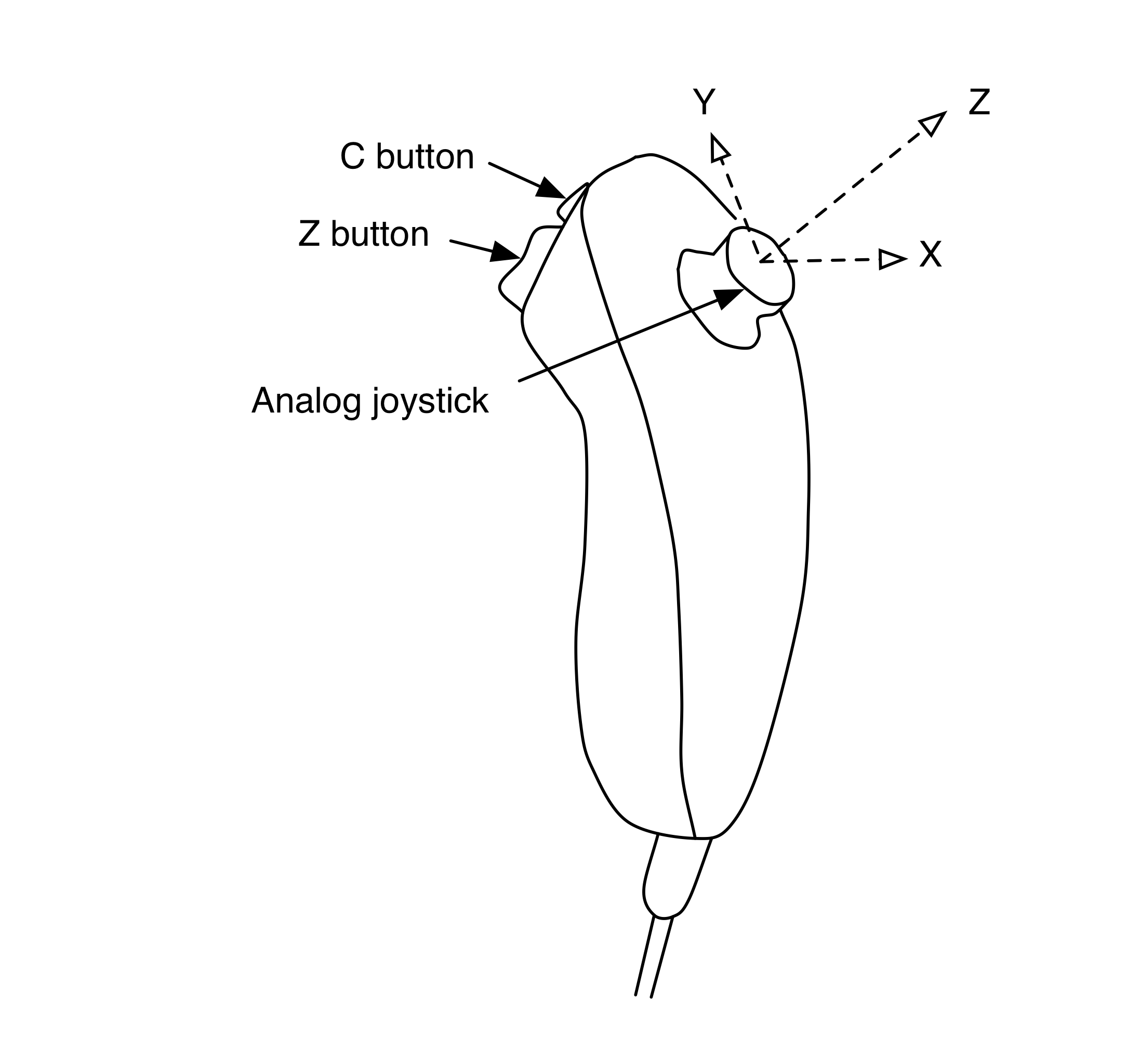

![](images/nunchuck-drawing.png# w-40pct)
![](images/space.png# w-2-12th)
![](images/nunchuck-data.png# w-40pct)

---
class: compact
# Analog Signals (digital <-> voltage)

* Analog to Digital Converter (ADC) : samples analog signal an produces digital representation
* Digital to Analog Converter (DAC) : converts digital representation into analog voltage
* These may be integral to processor (e.g. STM32L476) or external devices
* Frequently, the conversion must be "triggered" at regular intervals (for example sampling a continuous signal or
converting an audio file to an analog signal).

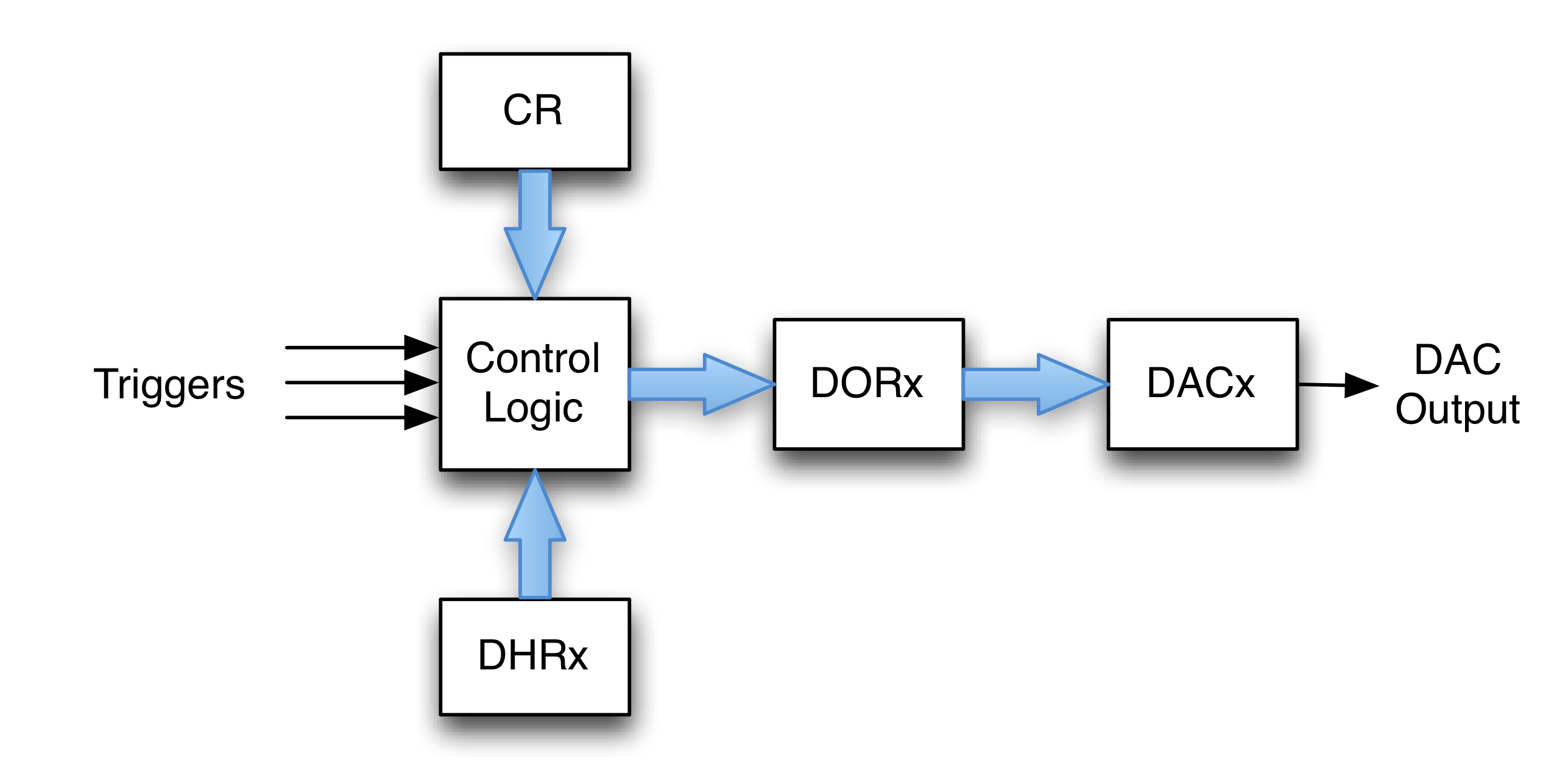

* Example architecture of a DAC channel:

![](images/space.png# w-30pct)
![](images/dac-channel.png# w-40pct)

---
class: compact
# Analog Conversion -- Successive approximation

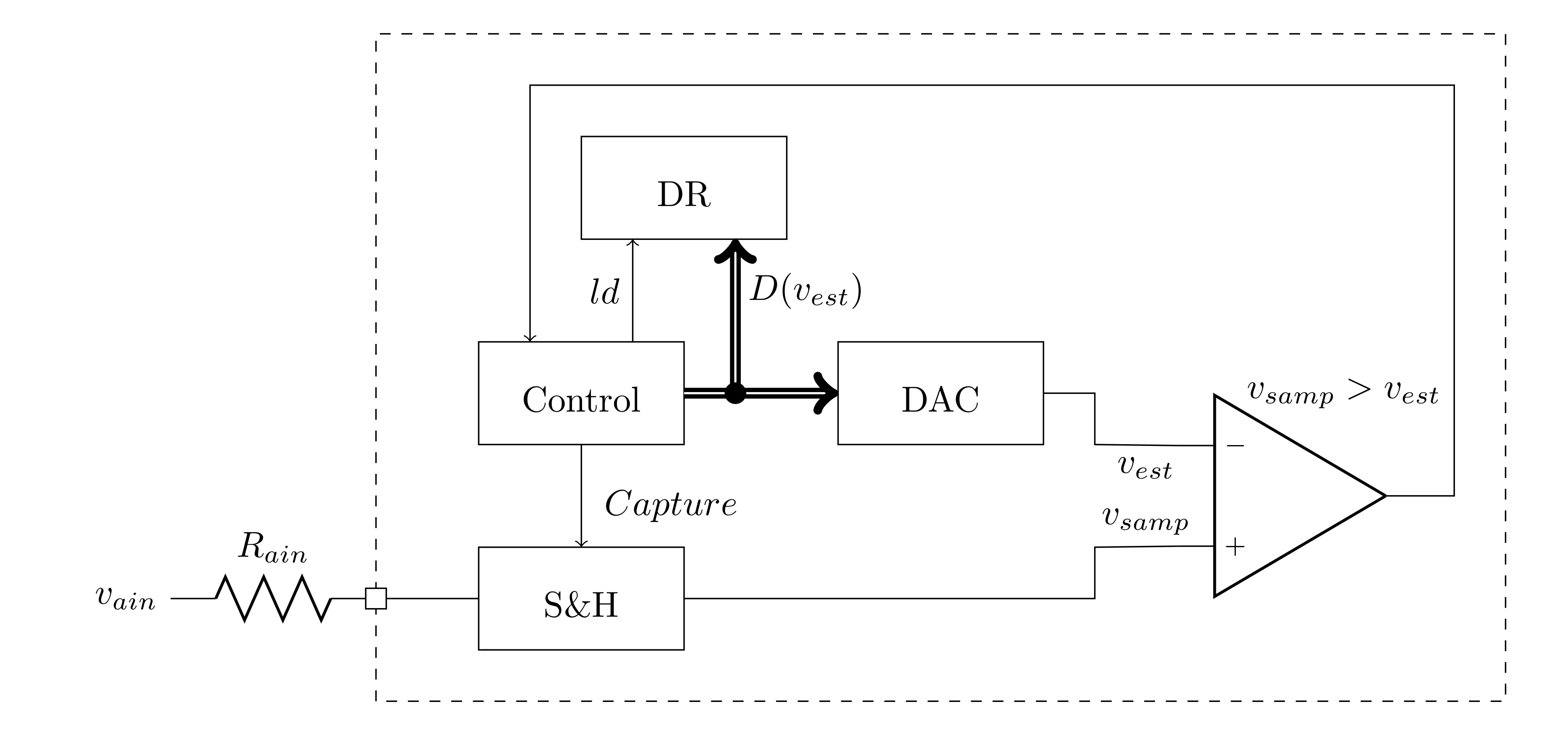

![](images/successive-approx.png# w-50pct)
![](images/space.png# w-1-12th)

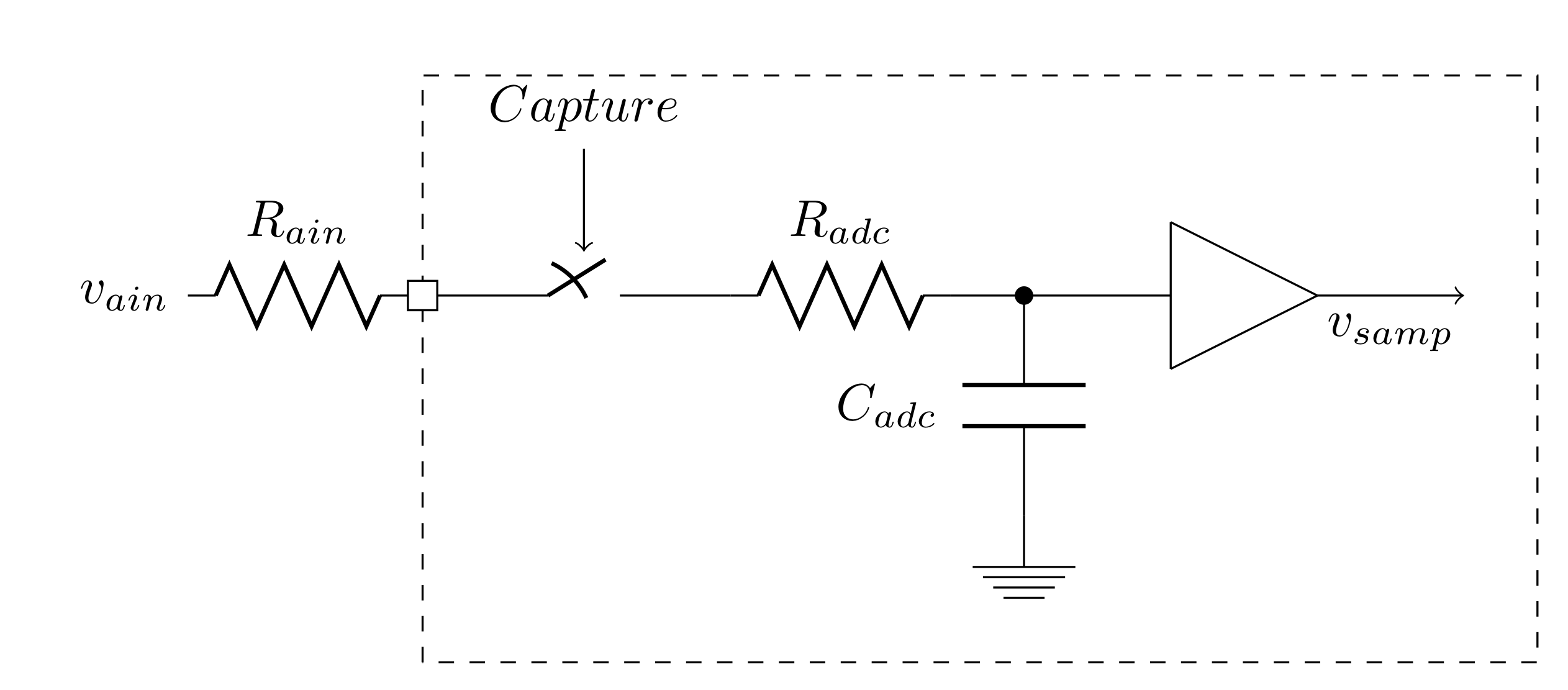

![](images/sample-hold.png# w-40pct)
---
class: compact
# Analog to Digital Converter Example

* STM32 ADC is complicated
   - multiple input sources including internal references
   - mulitple trigger conditions
   - complex programming

![](images/space.png# w-30pct)

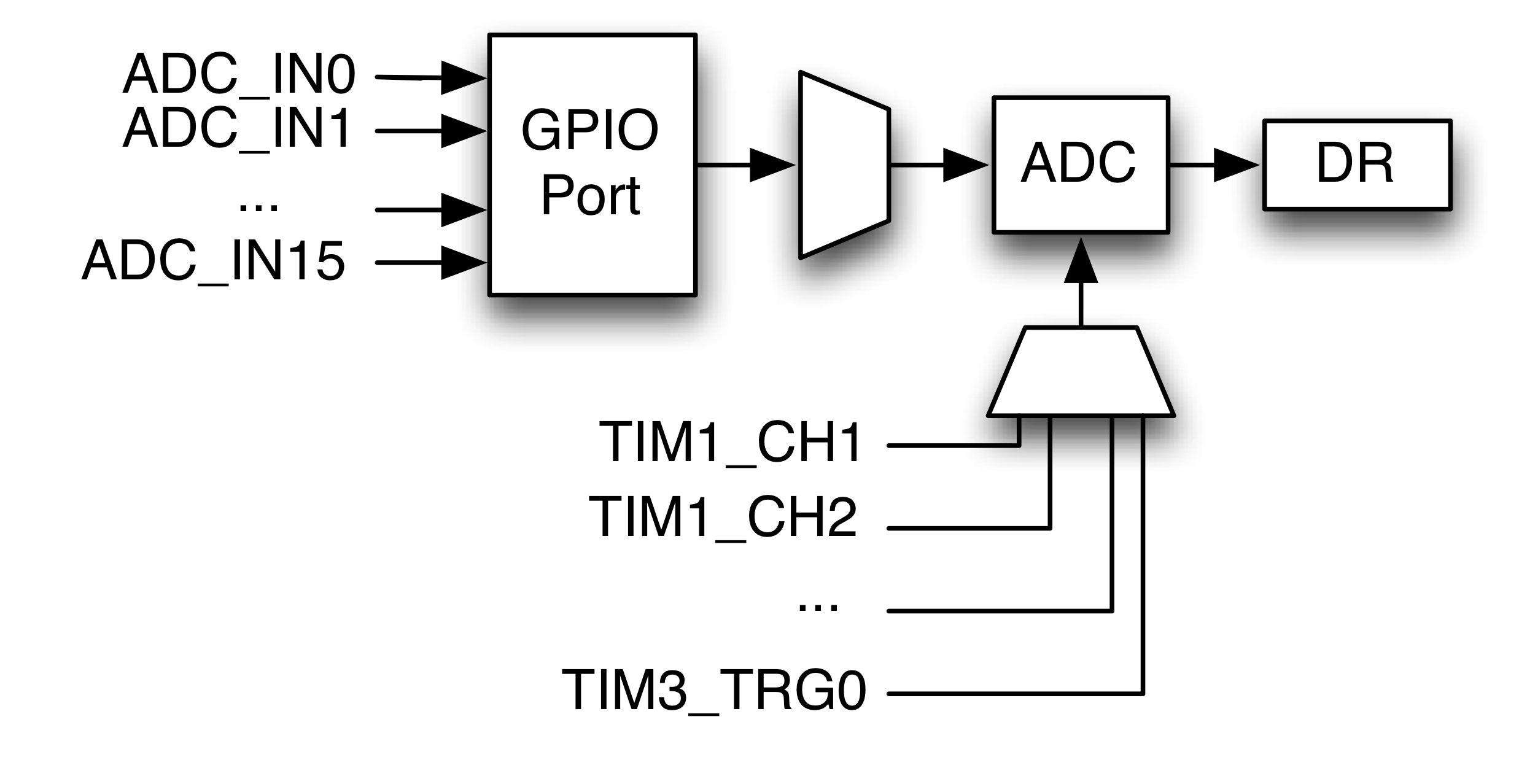

![](images/adc-architecture.png# w-40pct)

---
class: compact
# Summary

* Common hardware communication protocols
   - Serial  (asynchronous point-to-point)
   - SPI     (synchronous point-to-point)
   - I2C     (synchronous master/slave bus)
