Data Serialization

class: title, smokescreen, shelf, bottom, no-footer
background-image: url(images/protobuf.png)

# 181U Spring 2020
## Message Serialization

.smokescreen h1 {
    border-bottom: none;
}

.small {font-size: 80%}
  .smaller {font-size: 70%}
  .small-code.remark-slide-content.compact code {font-size:1.0rem}
  .very-small-code.remark-slide-content.compact code {font-size:0.9rem}

.line-numbers{
  /* Set "line-numbers-counter" to 0 */
  counter-reset: line-numbers-counter;
}

.line-numbers .remark-code-line::before {
  /* Increment "line-numbers-counter" by 1 */
    counter-increment: line-numbers-counter;
    content: counter(line-numbers-counter);
    text-align: right;
    width: 20px;
    border-right: 1px solid #aaa;
    display: inline-block;
    margin-right: 10px;
    padding: 0 5px;
}

</style>

---
layout: true
.footer[
- 181U
- See acknowledgements
]

---
class: compact
# Agenda

* The problem
* XDR
* JSON
* Protocol Buffers

---
class: compact,smaller
# The Problem

* MQTT provides a protocol for exchanging data  `topic value` but no guidance about the syntax for "value"
* Every receiver of an MQTT message must
   - decode the topic and route the message appropriately
   - decode the value, not so bad for simple things like 3.14159 or 42, but what if you want to send a structure ?
* Every sender of an MQTT message must
   - encode the topic, encode the value

* This problem arises in other context
   - Configuration of routers
   - remote procedure calls
   - Storing/retrieving binary data

---
class: compact

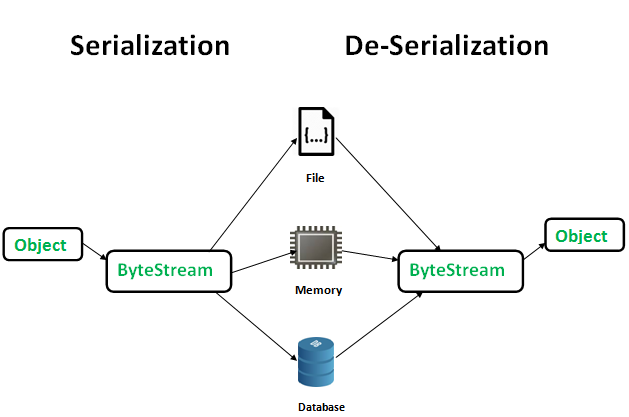

# Data Serialization

![](images/space.png# w-20pct)
![](images/serialize-deserialize.png# w-60pct)

https://www.geeksforgeeks.org/serialization-in-java/

---
class: compact
# Language Specific Solutions

* Java -- java.io.Serializability interface
   - `writeObject(Object obj)`
   - serialization runtime associates a version number with each Serializable class called a SerialVersionUID
   - Reader and Writer have to use the same code/version for the object library
* Python -- pickle
   - `pickle` module implements binary protocols for serializing and de-serializing Python structure
   - not secure -- pickle data can execute arbitrary code

---
class: compact
# Language Independent Solutions

* XDR  (External Data Representation Standard)  [rfc1832](https://tools.ietf.org/html/rfc1832)
   - Internet protocol developed for transfering data
* JSON (Javascript Object Notation)
   - Human readable format
* Google Protocol Buffers (protobuf) -- binary encoding, machine independent

---
class: compact
# XDR: External Data Representation

* Uses a language to describe data formats
* Used by ONC RPC (remote procedure calls), and NFS (network file system)
* assumes bytes are portable
* standard allows encoding/decoding on different architectures
* Format defined by an IDL file (a data description language)
* IDL file compiled to c code with rpcgen

---
class: compact
# XDR Encoding

* All items encoded as a multiple of four bytes.
* XDR Data types
  - Integer (32-bits, big endian)
  - Unsigned integer
  - Enumerations
  - Long integer (64 bits)
  - Floating point
  - Strings
  - Structures
  - Unions

---
class: compact
# XDR Encoding (example)

* Integer

```plaintext
           (MSB)                   (LSB)
         +-------+-------+-------+-------+
         |byte 0 |byte 1 |byte 2 |byte 3 |
         +-------+-------+-------+-------+
         <------------32 bits------------>
```
---
class: compact
# XDR Encoding (example)
* Structure

```c
         struct {
            component-declaration-A;
            component-declaration-B;
            ...
         } identifier;
```

The components of the structure are encoded in the order of their
declaration in the structure.  Each component's size is a multiple of
four bytes, though the components may be different sizes.

```plaintext
         +-------------+-------------+...
         | component A | component B |...
         +-------------+-------------+...
```

---
class: compact
# XDR Encoding (string)

* Length/data format
* Always rounded to multiple of four bytes

```plaintext

0     1     2     3     4     5   ...
         +-----+-----+-----+-----+-----+-----+...+-----+-----+...+-----+
         |        length n       |byte0|byte1|...| n-1 |  0  |...|  0  |
         +-----+-----+-----+-----+-----+-----+...+-----+-----+...+-----+
         |<-------4 bytes------->|<------n bytes------>|<---r bytes--->|
                                 |<----n+r (where (n+r) mod 4 = 0)---->|
                                                                  STRING
````

---
class: compact
# XDR Observations

* C-centric -- all of the types are C types
* (Very) inefficient -- every type is allocated space for the "worst case" (arrays and strings are exceptions)
* Very sensitive to change -- not possible to extend the message type (perhaps for
   other receivers) without recompiling the code everywhere
* No real sanity checking for messages
* Tools (rpcgen) are aimed at remote procedure calls
* rpcgen creates
   - header file with data structure for message
   - encoder function
   - decoder function

---
class: compact

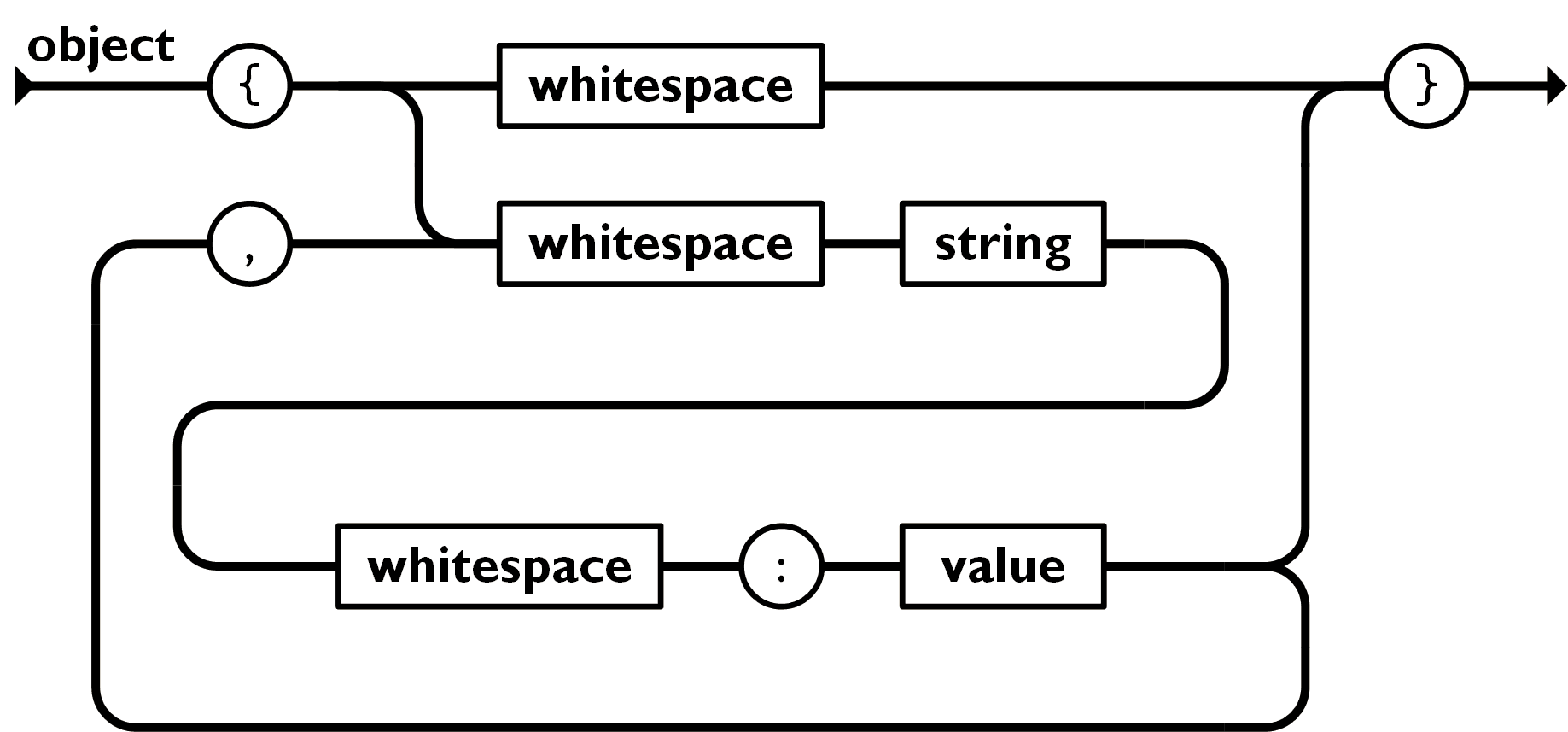

# JSON (Javascript object format)

![](images/json-object.png# w-40pct fr)

* Human readable/writable data format
* Subset of Javascript
* Built on two structures
  * A collection of name/value pairs  (e.g. a dictionary)
  * An ordered list of values (e.g. an array or list)

---
class: compact

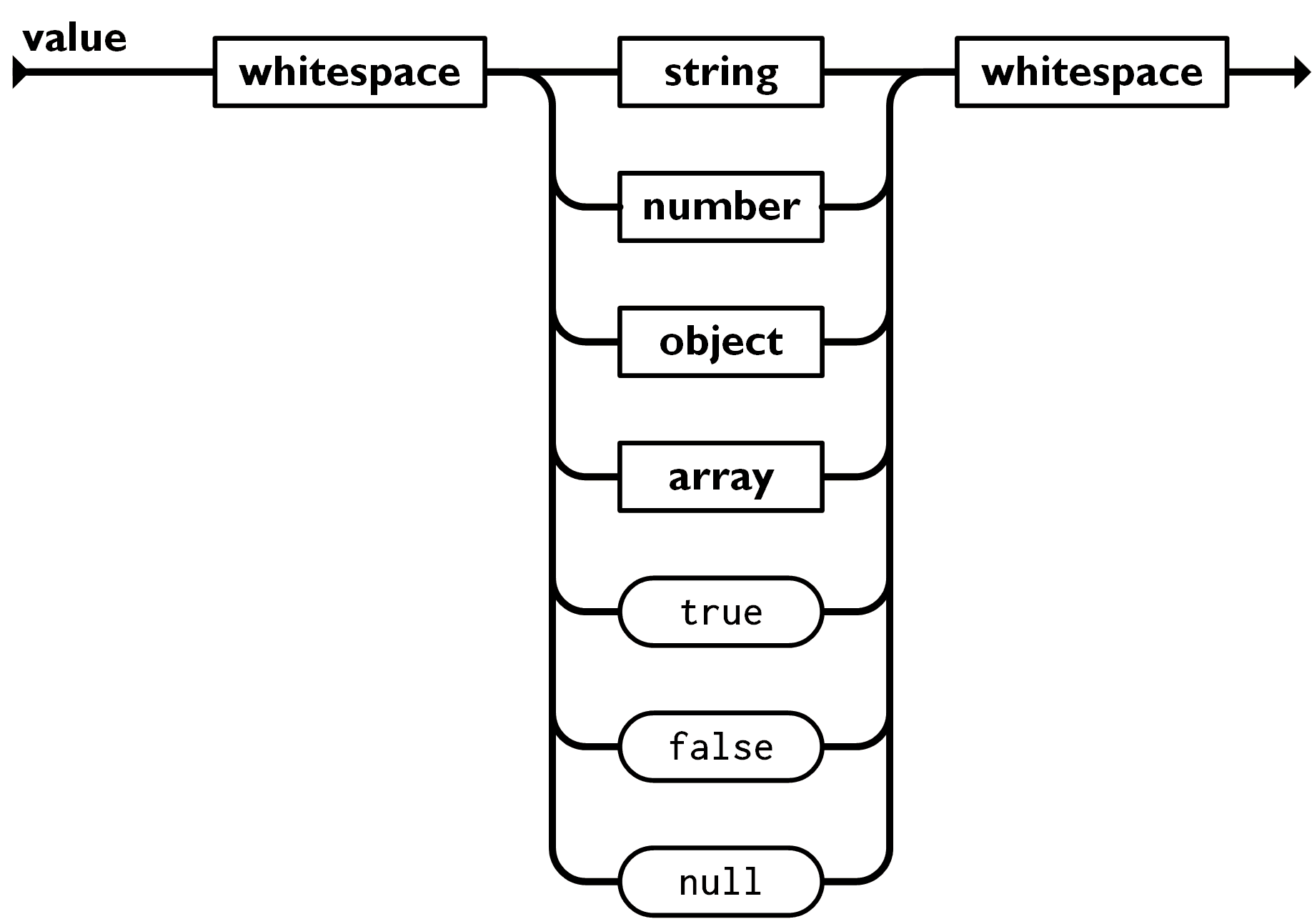

# JSON array and value

![](images/json-value.png# w-40pct)
![](images/space.png# w-10pct)
![](images/json-array.png# w-40pct)

---
class: very-small-code,compact,hljs-tomorrow-night-eighties,line-numbers
# JSON Example

```javascript
{"widget": {
    "debug": "on",
    "window": {
        "title": "Sample Konfabulator Widget",
        "name": "main_window",
        "width": 500,
        "height": 500
    },
    "image": {
        "src": "Images/Sun.png",
        "name": "sun1",
        "hOffset": 250,
        "vOffset": 250,
        "alignment": "center"
    },
    "text": {
        "data": "Click Here",
        "size": 36,
        "style": "bold",
        "name": "text1",
        "hOffset": 250,
        "vOffset": 100,
        "alignment": "center",
        "onMouseUp": "sun1.opacity = (sun1.opacity / 100) * 90;"
    }
}}
```

---
class: compact
# JSON Encoding/Decoding

* Relatively easy to "parse", but meaning is left as an exercise to the programmer
   - no error checking (is the JSON structure the correct one ?)
   - no specification of the "correct" JSON structure for validation
* There are libraries to help, but there is still string to xxx interpretation
   -  Example JSMN

---
class: compact
# JSMN

* portable to embedded processors
* C89 compatible output
* No library dependencies
* Small footprint
* Just parses into tokens, other work left to user.
  * Use C libraries to parse numbers
  * Need to map objects to data structures

---
class: compact,small-code,hljs-tomorrow-night-eighties,line-numbers
# JSMN Parsing

```javascript
'{ "name" : "Jack", "age" : 27 }'
```

JSMN creates tokens with boundaries in the string

* Object [0..31]
* String [3..7], String [12..16], String [20.23]
* Number [27..29]

`jsmntok_t` type is:

```C
typedef struct {
    jsmntype_t type; /* Token type */
    int start;       /* Token start position */
    int end;         /* Token end position */
    int size;        /* Number of child (nested) tokens */
} jsmntok_t;
```

---
class: compact,small-code,hljs-tomorrow-night-eighties,line-numbers
# Protocol Buffers

* Google's mechanism for serializing structured data
  - language-neutral
  - platform-neutral
  - extensible

```c
message Person {
  required string name = 1;
  required int32 id = 2;
  optional string email = 3;
}
```

```C++
Person john;
fstream input(argv[1],
    ios::in | ios::binary);
john.ParseFromIstream(&input);
id = john.id();
name = john.name();
email = john.email();
```

---
class: compact,small-code,hljs-tomorrow-night-eighties,line-numbers
# Protocol Buffer Basics: (e.g. Python)

* Message formats defined in a .proto file
* Converted to target language with protocol buffer compiler
* Example: Python protocol buffer API to write, read messages

* Why use protcol buffers
  - very compact binary format
  - generate language specific API for the message format chosen
  - message formats can be extended without affecting existing applications

---
class: compact,very-small-code,hljs-tomorrow-night-eighties,line-numbers,col-2
# Protocol Buffer Example

```protobuf
syntax = "proto2";

package tutorial;

message Person {
  required string name = 1;
  required int32 id = 2;
  optional string email = 3;

enum PhoneType {
    MOBILE = 0;
    HOME = 1;
    WORK = 2;
  }
```
```protobuf

message PhoneNumber {
    required string number = 1;
    optional PhoneType type = 2 [default = HOME];
  }

repeated PhoneNumber phones = 4;
}

message AddressBook {
  repeated Person people = 1;
}
```

---
class: compact,very-small-code,hljs-tomorrow-night-eighties,line-numbers
# Compiling .proto file

```
protoc -I=$SRC_DIR --python_out=$DST_DIR $SRC_DIR/addressbook.proto
```

* This generates `addressbook_pb2.py`
* Here is an example of creating a person

```python
import addressbook_pb2
person = addressbook_pb2.Person()
person.id = 1234
person.name = "John Doe"
person.email = "jdoe@example.com"
phone = person.phones.add()
phone.number = "555-4321"
phone.type = addressbook_pb2.Person.HOME
```
---
class: compact,very-small-code,hljs-tomorrow-night-eighties,line-numbers
# Serialization Methods Generated

* `SerializeToString()`: serializes the message and returns it as a string
* `ParseFromString(data)`: parses a message for a string

---
class: compact
# C++ Compilation

```
protoc -I=$SRC_DIR --cpp_out=$DST_DIR $SRC_DIR/addressbook.proto
```

* `addressbook.pb.h` : c++ header
* `addressbook.pb.cc` : c++ implementation of classes

---
class: compact,very-small-code,hljs-tomorrow-night-eighties,line-numbers,col-2
# C++ Generated API

```c++
 // name
  inline bool has_name() const;
  inline void clear_name();
  inline const ::std::string& name() const;
  inline void set_name(const ::std::string& value);
  inline void set_name(const char* value);
  inline ::std::string* mutable_name();

// id
  inline bool has_id() const;
  inline void clear_id();
  inline int32_t id() const;
  inline void set_id(int32_t value);
```
<br>

```c++
  // email
  inline bool has_email() const;
  inline void clear_email();
  inline const ::std::string& email() const;
  inline void set_email(const ::std::string& value);
  inline void set_email(const char* value);
  inline ::std::string* mutable_email();
  // phones
  inline int phones_size() const;
  inline void clear_phones();
  inline const ::google::protobuf::RepeatedPtrField< ::tutorial::Person_PhoneNumber >& phones() const;
  inline ::google::protobuf::RepeatedPtrField< ::tutorial::Person_PhoneNumber >* mutable_phones();
  inline const ::tutorial::Person_PhoneNumber& phones(int index) const;
  inline ::tutorial::Person_PhoneNumber* mutable_phones(int index);
  inline ::tutorial::Person_PhoneNumber* add_phones();
```

---
class: compact
#  C++ Parsing and Serialization

* `bool SerializeToString(string* output) const;`: serializes the message and stores the bytes in the given string. Note that the bytes are binary, not text; we only use the string class as a convenient container.
* `bool ParseFromString(const string& data);`: parses a message from the given string.
* `bool SerializeToOstream(ostream* output) const;`: writes the message to the given C++ ostream.
* `bool ParseFromIstream(istream* input);`: parses a message from the given C++ istream.

---
class: compact,very-small-code,hljs-tomorrow-night-eighties,line-numbers
# Encoding -- A simple message

```c
message Test1 {
  optional int32 a = 1;
}
```

Suppose you create a message and set `a` to 150.  The serialized stream is three bytes (smaller than an int)
```
08 96 01
```
---
class: compact,very-small-code,hljs-tomorrow-night-eighties,line-numbers
# Encoding (example)

* Encoding of integers is variable length -- only the bytes needed are generated
   - Each byte except the last has msb set (thus carries 7 bits of data)
   - bits are least significant group first
   - To encode the number 1  `0000 0001` (a single byte)
   - To encode 300 :

```plaintext
   1010 1100 0000 0010 --> drop msb
    010 1100  000 0010 --> reverse order of "bytes"
    000 0010  010 1100 --> simplify
           1 0010 1100 --> convert to decimal
  256 + 32 + 8 + 4     --> 300
```
---
class: compact
# Message Structure

* Protocol buffer message is a series of key-value pairs.
* Keys in the binary message are the "tags"
* Encoded keys are tag + "wire type"

Wire types

| Type | Meaning | Used for |
| -----|---------|----------|
| 0 | Varint | int32, int64, uint32, uint64, sint32, sint64, bool, enum |
| 1 | 64-bit | fixed64, sfixed64, double |
| 2 | length-delimited | string, bytes, ... |
| 5 | 32-bit | fixed32,sfixed32, float |

---
class: compact,small-code,hljs-tomorrow-night-eighties,line-numbers
# Message -- String

```c
message Test2 {
  optional string b = 2;
}
```
Suppose we have a message with b = "testing"

```plaintext
12 07 74 65 73 74 69 6e 67
```

The last 7 bytes are the utf-8 encoding of "testing"

---
class: compact
# Protocol Buffers Summary (so far)

* Simple language for describing message types
* Very compact "wire" encoding
* Compiler generates message specific APIs for a variety of languages
   - C++
   - Java
   - Python
   - Go
   - C#
   ...

---
class: compact
# Protocol Buffer Message Definitions Can be Extended

* you *must not* change the tag numbers of existing fields
* you *must not* delete any required fields
* you *may* delete optional or repeated fields
* you *may* add new optional or repeated fields provided fresh tag numbers are used

---
class: compact
# Protocol Buffer support for embedded code

* Nanopb -- an extension that uses protoc to generate compact C code
* Typical project includes these files
   - Nanopb runtime
   - Protocol description
      - protodef.proto
      - protodef.pb.c  (generated)
      - protodef.pb.h  (geneated)
* Small code size  (~10KB compiled)
* Small ram usage (around 300 bytes plus message structs)
* I've used this for my research in sub-gram data loggers -- all communication with tags is using protobuf

---
class: compact
# Summary
* Acknowledgements
  -  Cover: Alternative and Flexible Control Approaches for Robotic Manipulators: on the Challenge of Developing a Flexible Control Architecture that Allows for Controlling Different Manipulators - Scientific Figure on ResearchGate. Available from: https://www.researchgate.net/figure/To-use-Protocol-Buffers-it-is-necessary-to-generate-code-for-each-message-that-needs_fig17_285578991 [accessed 6 Feb, 2020]
