# Agenda

* Point-to-point encoding
    * clock recovery
* Framing
    * Character Count
    * Byte stuffing
    * Bit stuffing
*  SLIP
*  Efficient byte stuffing

---
class: compact
# Direct Links

* We need to understand how "reliable" transmission can be implemented
* Issues to consider
  * Encoding -- how data are transmitted across a link
  * Framing -- how to send blocks of data across point-to-point link
  * Error detection -- how to determine if an error has occurred

---
class: compact
# Encoding

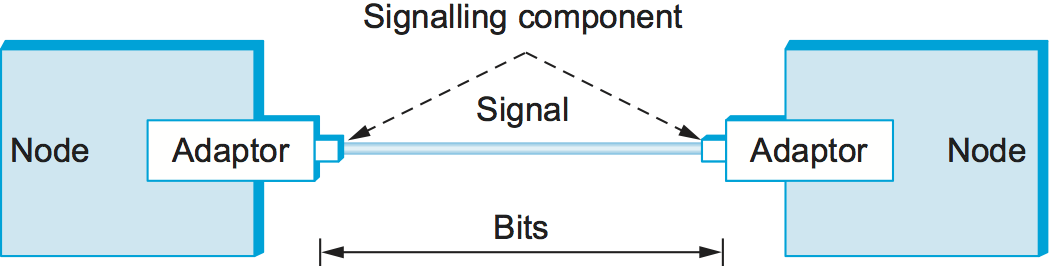

![](images/encoding.png# w-50pct fr)

* Signals travel between signalling components
* Bits flow between adaptors

![](images/space.png# w-30pct)

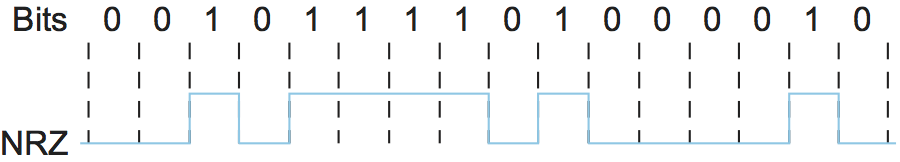

![](images/nrz-encoding.png# w-40pct)

* Problems with NRZ
   * Long strings of 1's cause DC offset of signal
   * Clock recovery -- how do we know where the bits
   are ?

---
class: compact
# Low-level Hardware protocols have separate clock

* SPI
![](images/space.png# w-30pct)
![](/slides/hw-communications/images/spi-logical.png# w-40pct)

* I2C
![](images/space.png# w-30pct)
![](/slides/hw-communications/images/I2C-configuration.png#  w-40pct)
---
class: compact
# Clock Recovery

*  Protocols such as UART assume "synchronized" clocks at sender/receiver
*  At high data rates this is a technical challenge
*  There is per-byte overhead of 2.5/8 percent

![](images/space.png# w-20pct)
![](/slides/hw-communications/images/serial-frame.png# w-60pct)

---
class: compact
# High Speed Protocols Encode the Clock in the Data

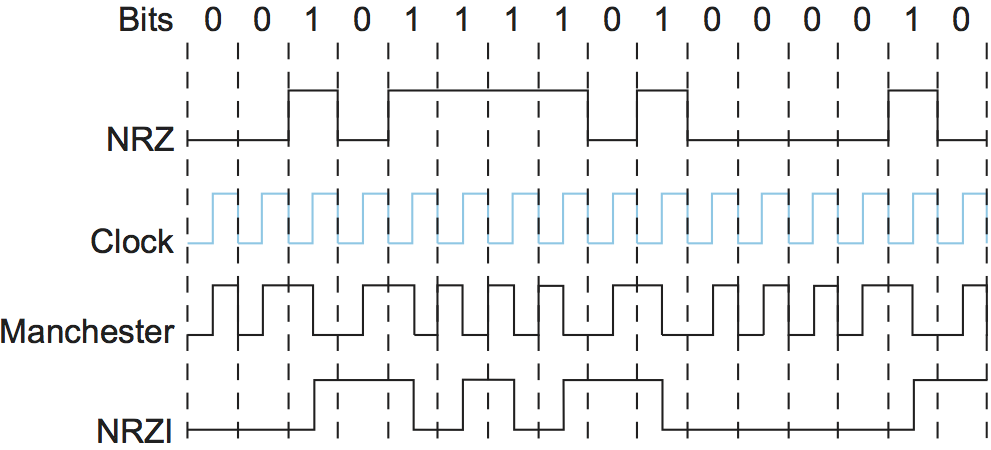

![](images/coding.png# w-40pct fr)

* Manchester Encoding guarantees at least one edge per bit -- but it doubles the datat rate
   - notice that 0 is encoded as a low-high transition, 1 is encoded as a high-low transition
* Clock is recovered with a phase locked-loop

![](images/space.png# w-30pct)
![](images/pll.svg# w-60pct)
---
class: compact
# 4B/5B: Encode clock in data with smaller overhead

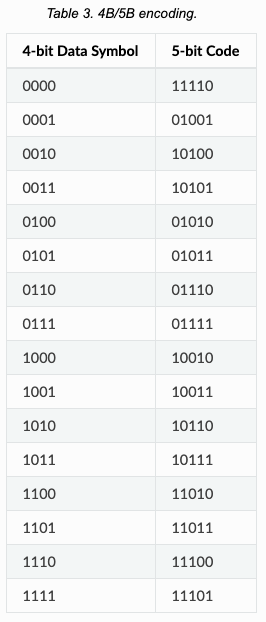

![](images/4b5b.png# w-2-12th fr)

* 4B/5B  Solves inefficiency of Manchester Encoding while remaining (more) balanced.  Every 5 bits encode 4 bits of data.  Every *legal* code has no more than one leading 0 and no more than two trailing 0's
* Some reserved codes
    * 00000  -- line is dead
    * 11111  -- line is idle
    * 00100  -- halt
* 8B/10B is a similar id.  Used in DAT digital audio recorder, Fibre Channel
* 64B/66B used in 10Gbit Ethernet

---
class: compact
# Framing

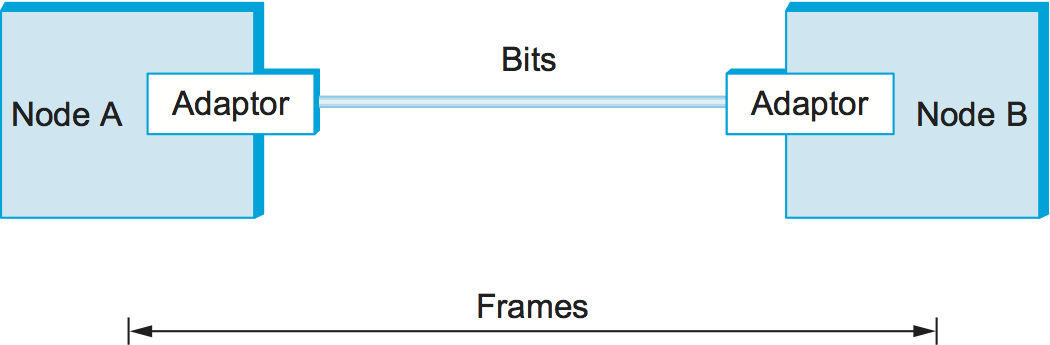

![](images/framing.png# w-50pct fr)

We'll consider two different approaches:

1. Byte-oriented protocols (PPP)
    - framing is handled by inserting distinguished bytes in sequence to identify start/end of a frame
    - only suitable for encodings that are byte-oriented
2. Bit-oriented protocols (HDLC)
    - distinguished bit patterns inserted in data to identify start/end frame

Fibre standards use yet another approach.

3. Clock-based Framing (SONET)

Typically framing protocols also include basic error detection

---
class: compact
# Byte-Oriented Framing

There are three approaches:

1. Add a length field (character count)
1. Use special characters to mark the beginning and end of frame
2. Use a byte count at beginning of frame (this is more error prone)

IBM Binary Synchronous Communication (BISYNC)
* Mark beginning of frame with SYN character
* "Escape" SYN characters by preceding them with DLE character
* "Escape" DLE character with another DLS character.

---
class: compact
# Character Count

* Field in header gives number of characters in frame

![](images/space.png# w-20pct)
![](images/charactercount.jpg# w-60pct)

* (b) illustrates the problem -- if a transmission error changes the count, all the frames are out of sync
https://www.computing.dcu.ie/~humphrys/Notes/Networks/data.framing.html
---
class: compact
# Byte-Oriented Framing (PPP)

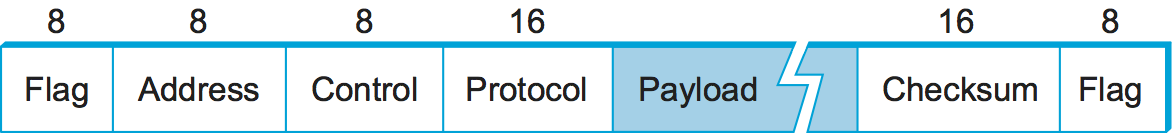

![](images/ppp.png# w-50pct fr)

* The start-of-text character (FLAG) is 01111110.
* Protocol used for demultiplexing link (IP is distinguished)
* Checksum (really a CRC code) used to validate frame
* Payload is 1500 bytes by default.

---
class: compact
# Byte Stuffing

![](images/space.png# w-20pct)

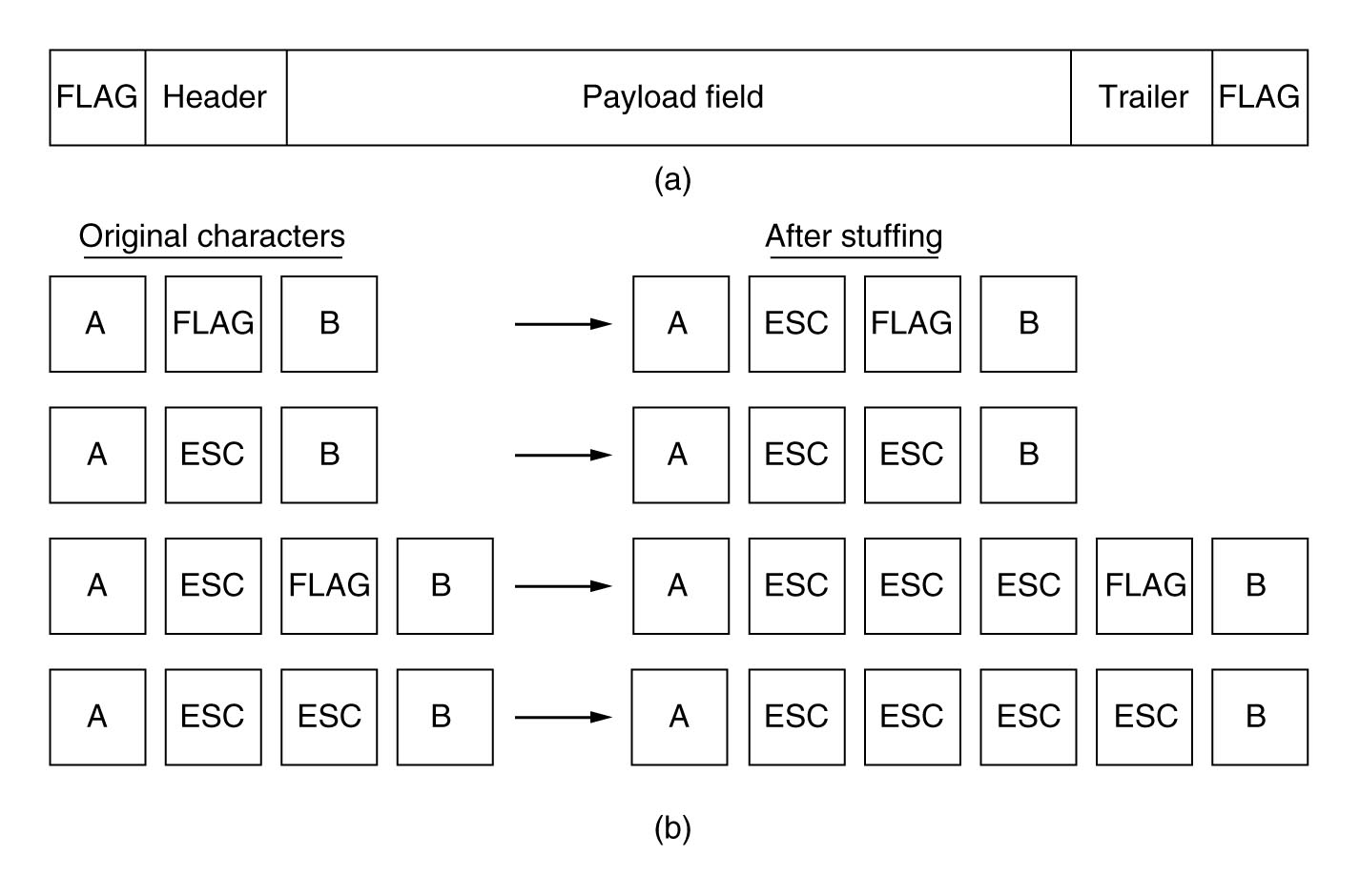

![](images/bytestuffing.jpg# w-60pct)

https://www.computing.dcu.ie/~humphrys/Notes/Networks/data.framing.html

* What if the flag is in the data ?   Insert a special escape byte (ESC) before each flag.
* What if the ESC is in the data  ? Insert another ESC before it

---
class: compact
# SLIP

* SLIP is a "non-standard" standard that uses byte-stuffing for frames and is easily implementd
* [RFC 1055](https://tools.ietf.org/html/rfc1055)

```plaintext
SLIP has its origins in the 3COM UNET TCP/IP implementation from the
   early 1980's.  It is merely a packet framing protocol: SLIP defines a
   sequence of characters that frame IP packets on a serial line, and
   nothing more. It provides no addressing, packet type identification,
   error detection/correction or compression mechanisms.  Because the
   protocol does so little, though, it is usually very easy to
   implement.
```
---
class: very-small-code,compact,hljs-tomorrow-night-eighties,line-numbers
# SLIP Transmitter

```C
#define END             0300    /* indicates end of packet */
#define ESC             0333    /* indicates byte stuffing */
#define ESC_END         0334    /* ESC ESC_END means END data byte */
#define ESC_ESC         0335    /* ESC ESC_ESC means ESC data byte */

void send_packet(p, len) {
        char *p;
        int len;
        send_char(END); // clear channel
        while(len--) {
                   switch(*p)
                   case END:  // END must be escaped
                           send_char(ESC);
                           send_char(ESC_END);
                           break;
                   case ESC:  // ESC must be Escaped
                           send_char(ESC);
                           send_char(ESC_ESC);
                           break;
                   default:
                           send_char(*p);
                    }
                   p++;
        }
        send_char(END);
}
```

---
class: very-small-code,compact,hljs-tomorrow-night-eighties,line-numbers
# SLIP Receiver

```C
int recv_packet(p, len) {
    char *p;
    int len; {
    char c;
    int received = 0;
    while(1) {
        c = recv_char();
        switch(c) {
            case END:
                return received;
            case ESC:
                c = recv_char();
                switch(c) {
                    case ESC_END:
                        c = END;
                        break;
                    case ESC_ESC:
                        c = ESC;
                        break;
                }
            default:
                if(received < len)
                    p[received++] = c;
        }
    }
}
```

---
class: compact
# Efficient Byte Stuffing

* In the worst case, byte stuffing has 100% overhead
* Consistent overhead byte stuffing addresses this issue [paper](http://www.stuartcheshire.org/papers/COBSforToN.pdf)
* COBS guarantees at most one extra byte of overhead per 254 bytes.
* Like normal byte stuffing, COBS performs a reversible tranformation on a data packet to eliminate a single
value from the packet
    - in the following, 0 is chosen as the distinguished byte.

---
class: compact
# COBS algorithm
* COBS appends a single 0 byte to the data
* COBS finds all the 0 bytes and divides the packet at these boundaries -- every chunk has
a single 0 byte at the end.  (some chunks only have one byte -- 0)
* COBS encodes each chunk (breaking chunks longer than 254 bytes) and prepends the chunk with a one-byte code

| Code | Followed by | Meaning |
|------|-------------|---------|
| 0x00 |  N/A        | Not allowed |
| 0x01 | no data bytes | a single zero byte |
| n    | (n-1) data bytes | (n-1) data bytes followed by a 0 |
| 0xFF | 254 data bytes | 254 data bytes not followd by a zero

---
class: compact
# COBS Example

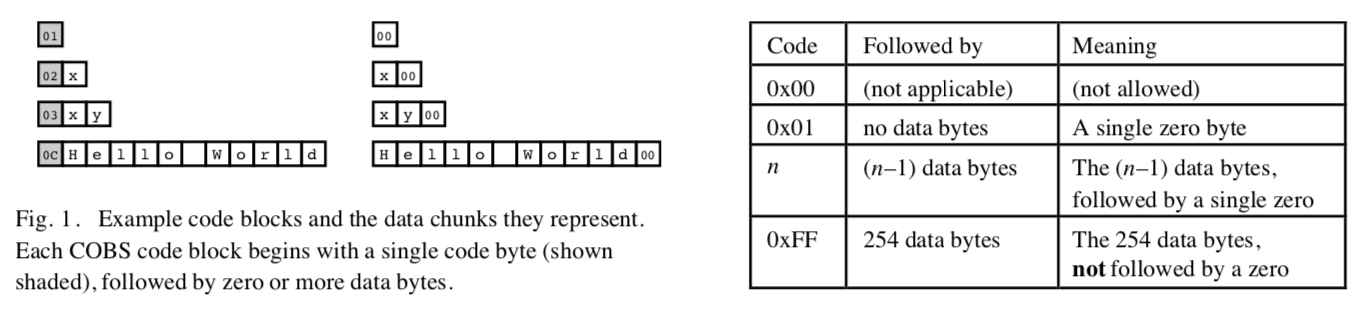

![](images/cobs.png)

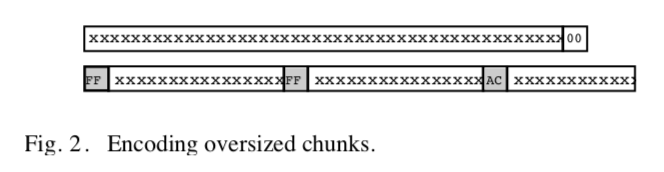

![](images/cobslong.png# w-50pct)
![](images/space.png# w-1-12th)

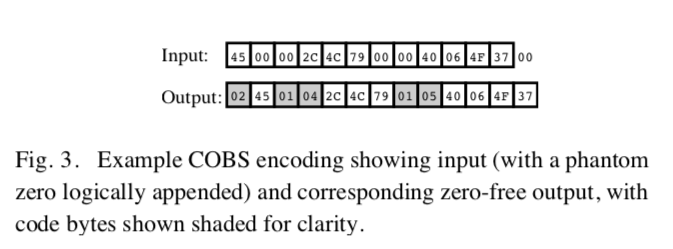

![](images/cobsencoding.png# w-40pct)

---
class: compact
# COBS Performance

![](images/space.png# w-20pct)

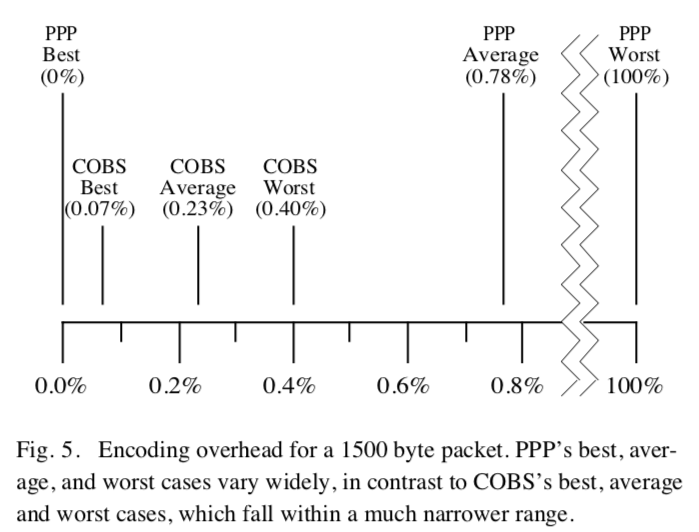

![](images/cobsperformance.png# w-60pct)

---
class: compact
# COBS Three Day Data Trace

![](images/space.png# w-30pct)

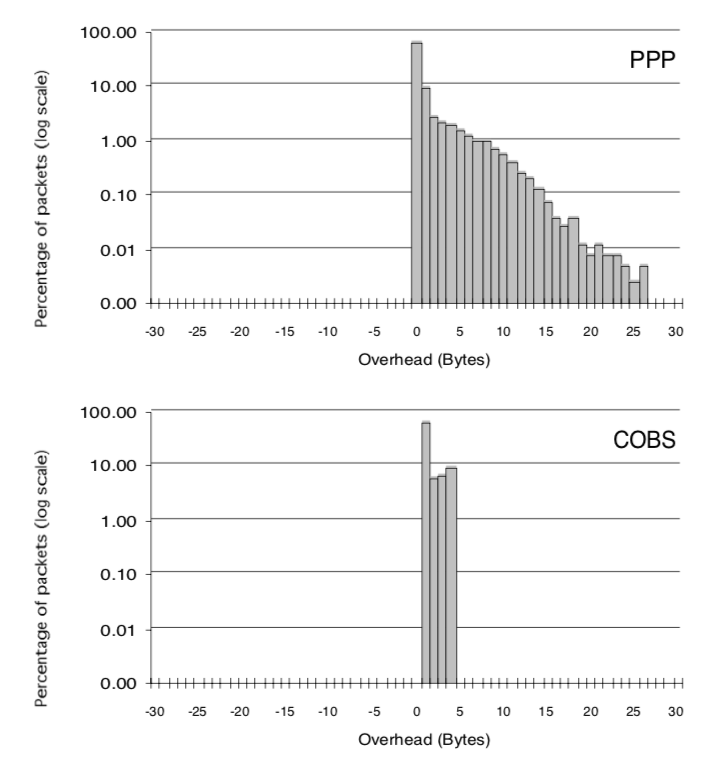

![](images/cobsthreeday.png# w-40pct)
---
class: compact
# Bit-oriented framing (HDLC)

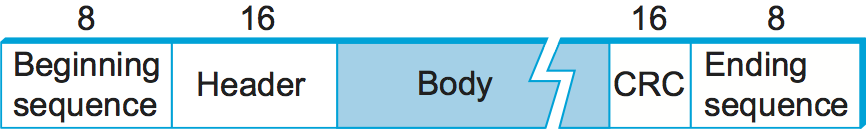

![](images/hdlc.png# w-50pct fr)

* Not concerned with byte boundaries
* Distinguished sequence 01111110
* Uses "bit-stuffing" to break up sequences of  6 1's

---
class: compact
# Bit Stuffing

![](images/space.png# w-20pct)
![](images/bitstuffing.jpg# w-60pct)

* Each frame begins with 01111110 (6 ones)
* Anytime there are 5 ones in a row -- stuff an extra 0 after the fifth one

https://www.computing.dcu.ie/~humphrys/Notes/Networks/data.framing.html

---
class: compact
# Error Detection

There are many techniques.  Two common ones are
* Checksum
  * add up the words being transmitted and transmit the sum
  * relatively weak protection
* Cyclic redundancy code (CRC)
  * Uses a polynomial to generate error code
  * 32-bit CRC gives reasonably strong protection for common bit errors

---
class: compact
# Checksum Calculation

* Internet checksum uses 1's complement arithmetic (bitwise not)

```C
 u_short
cksum(u_short *buf, int count){
    register u_long sum = 0;

while (count--){
        sum += *buf++;
        if (sum & 0xFFFF0000){
            /* carry occurred, so wrap around */
            sum &= 0xFFFF;
            sum++;
        }
    }
    return ~(sum & 0xFFFF);
}
```
---
class: compact
# CRC

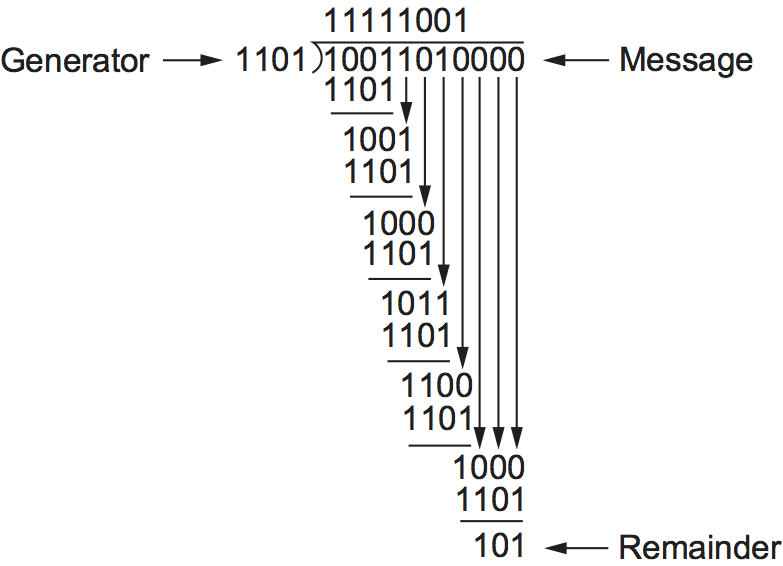

![](images/crc-calculation.png# w-40pct fr)

* Computes a code by "dividing" data with a fixed polynomial
* Well chosen polynomials protect against long strings of bit errors (the most common type)
    * Example Polynomial:  1101  (1^3 + 1^2 + 1^0)
    * Message:  1001101
    * Extended Message: 10011010000
* Transmitted message : 10011010101  (Extended message ^ remainder)
* Received message is correct if remainder from division is zero
* CRC is easy to calculate in hardware !

---
class: compact
# Summary

* Framing
* Error Detection
* Acknowledgements
    * Content and images from http://book.systemsapproach.org
