Games and Loops

Think back to our Extreme Number Guess Challenge from last time. That game was not so great after all. Why not?

Well, one reason is that the chances of winning are pretty slim and there's no real way for a player to influence the outcome. In other words, there are only 10 possible strategies (pick 0, pick 1, pick 2, …) and none of them is any better than the rest. So it's not very interesting.

Let's consider two alternatives:

1. The player can keep guessing until they get it right.
2. The player gets 3 guesses, but the program gives them a hint after each guess.

Both of these are much more winnable, but which has less "strategy collapse"? There's not much you can do for the first one besides guessing each number in turn, but for the second there's room to use some more complex strategy: Guess 5, then if the hint says that the true value is higher then guess 8, then if the hint says the true value is lower you've got a 50/50 chance!

So there are two tweaks here that help promote our first little Rust program into a bona fide game that would be right at home on any graphing calculator:

• Both variations introduce a game loop that gives the player opportunity to interact with the game over time
• Variation 2 provides usable feedback that helps the player make more informed decisions

Along with our initial ingredient of user input, we now have all we need to make a real (if simple) game.

Open a terminal in the parent directory of the extreme number guessing game and run cargo new --bin --edition 2021 number-guessing-game. Put rand into your Cargo.toml file…

[package]
name = "number-guessing-game"
version = "0.1.0"
authors = ["Joseph C. Osborn <joseph.osborn@pomona.edu>"]
edition = "2021"

[dependencies]
rand = "0.8.5"

And now we can implement our guessing game in src/main.rs:

// First we'll import a useful function and trait from rand...
use rand::{thread_rng, Rng};
// and the std::io module which will let us get user input.
use std::io;
// We need the Write trait so we can flush stdout
use std::io::Write;

// Every program needs an entry point:
fn main() {
    // Generate a random number.
    let number: usize = thread_rng().gen_range(0..10);
    // We could have written this and skipped the type annotation (why?):
    // let number = thread_rng().gen_range(0_usize..10);
    // Print out a prompt...
    println!("I'm thinking of a number between 0 and 10.");

    // We'll need an owned String to read input into.
    // Rust's Reader API tries to be efficient by reusing allocations.
    let mut input = String::new();

    // This part is new!
    let mut guesses_left = 3;
    while 0 != guesses_left {
        println!("You have {} guess(es) left...", guesses_left);
        print!("> ");
        // Flush so that the prompt is definitely printed
        io::stdout().flush().unwrap();

        // Don't forget to clear out our input string scratchpad!
        input.clear();

        // Actually read a line---call the stdin() function from the io namespace,
        // which gives us something on which we can call read_line.
        // Then unwrap it---can you think of better error handling here?
        io::stdin().read_line(&mut input).unwrap();

        // Trim whitespace off of input.
        // This shadows input for the rest of the block, but when we get back up to `input.clear()` above it's the String again.
        let input = input.trim();

        println!("You guessed {}...", input);

        // Can we do better error handling than "unwrap" here?
        let guess: usize = input.parse().unwrap();
        guesses_left -= 1;

        if guess == number {
            println!("You got it!");
            break;
        } else if guesses_left == 0 {
            println!("I was thinking {}!", number);
            println!("You didn't get it!");
            break;
        } else if guess < number {
            println!("Too low!");
        } else if number < guess {
            println!("Too high!");
        }
    }
}

In this class, we'll separate out the idea of technical game systems from the underlying game design concept of systems of interactions—we'll build the latter out of operational logics, and from those logics we'll construct game mechanics and other higher level concepts:

• Control logics: Button and axis inputs are mapped onto abstract game actions, often located in particular characters.
• Collision logics: Stuff can happen when things touch.
• Physics logics: Things move in continuous space, things have physical properties like mass and can influence each other.
• Resource logics: There are pools of resources that can be exchanged and converted between forms. Things can happen when resources cross certain thresholds.
• Pattern matching logics: When objects enter a certain arrangement in space or time, something can happen.
• Game state logics: The game can be in different modes at different times.
• And so on (for a full set of logics, see the list).

Lots of mechanics can be built out of combinations of these logics:

• When the player spaceship touches an asteroid, the player loses some health resource
• When the ball hits the paddle, its velocity's x and y components are each flipped
• If the player's health drops below 0, the game is over
• If the player holds the grab button while touching a box, they can pick up the box; then if they're moving the box will move too; but while they're holding it their stamina goes down, and if it's empty the player will drop the box.

Let's look at how we can build a few different genres of games by putting together different sets of logics.

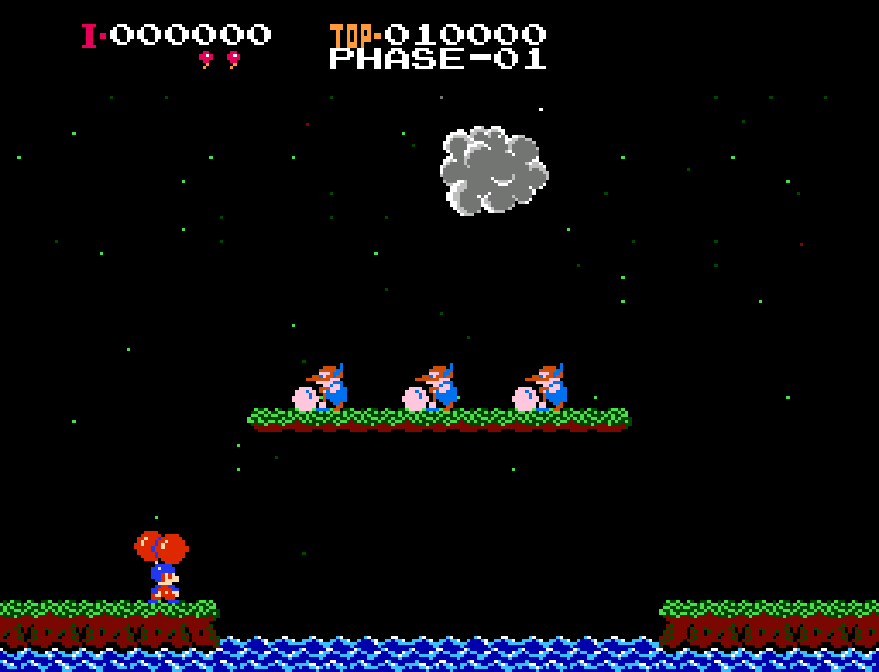

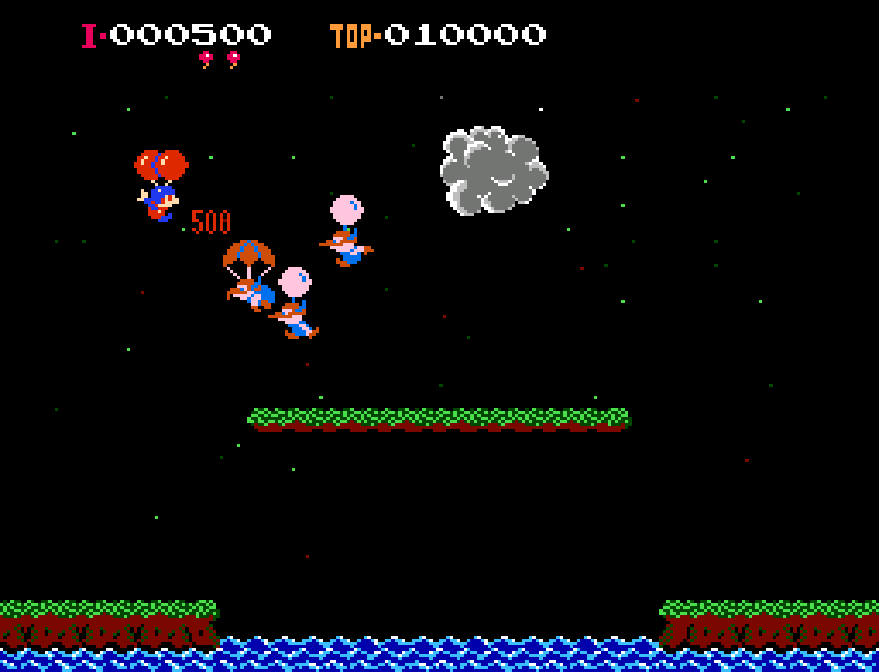

First, we'll examine arcade games, sometimes called "graphical-logic games". These games (like Pac-Man, Pong, Asteroids, or Balloon Fight) combine collision and physics logics with simple resource, character-state, and control logics. Let's look at a few screenshots of Balloon Fight and try to figure out what's going on:

In Balloon Fight, you tap a button to flap your character's arms and rise above your opponents; if you descend onto their balloons they pop and you earn points, but if your balloons are popped you lose. You also lose a life if you fall into the water or are struck by lightning. Interestingly, the map wraps around horizontally—so you can exit the right side of the screen to appear on the left side.

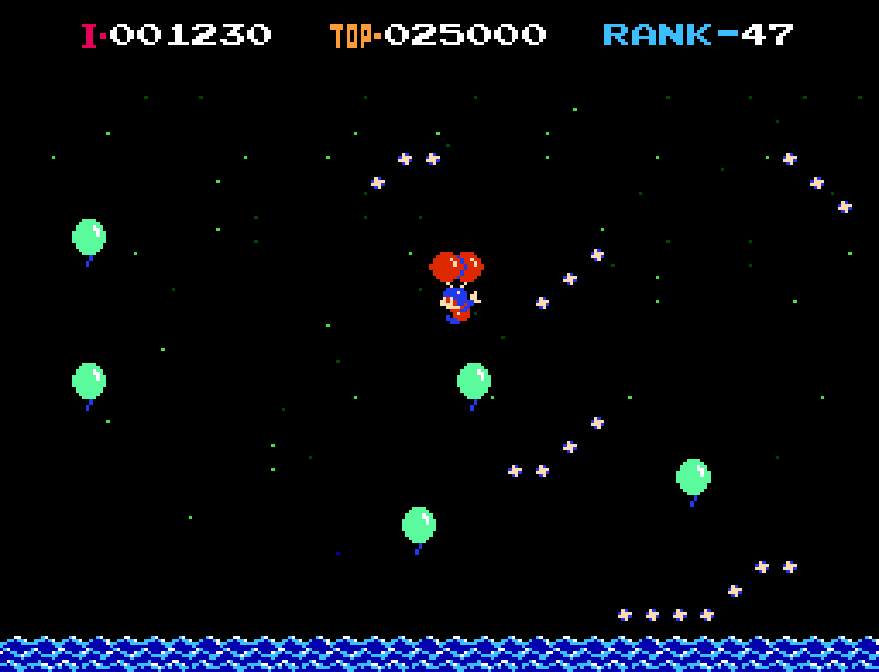

While these constitute something like the "rules" of the game, we can see they're made up of a few pieces: flapping (control, character-state), rising and falling (physics), stuff happening when things touch (collision), points going up and lives going down (resource). If the rules are tweaked slightly and we add in camera logics, we end up with Balloon Fight's second mode, "Balloon Trip", which does away with the humanoid enemies and has the player float leftwards forever, in 1985's chillwave version of the endless runner genre.

These two are clearly both variations on the same foundational rules and logics. What if we were to add a new logic? Incorporating links between discrete spaces, we could obtain distinct levels or stages; developing the character-state logics a bit further yields something like this:

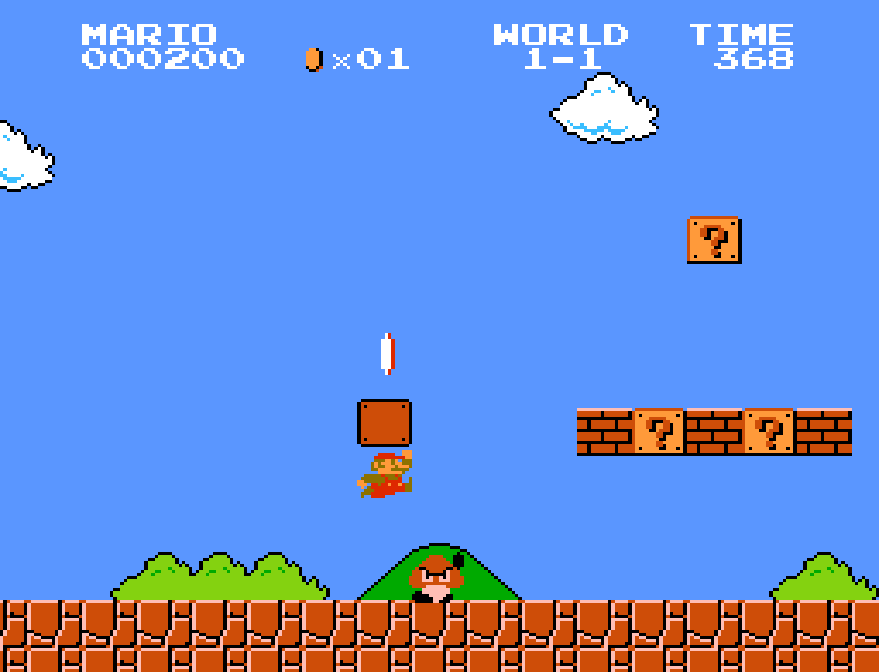

Mario can jump, get fire powers, and do some other things, but his main advantage over Balloon Fight Guy is the ability to go down pipes and flagpoles to get to new areas. The use of linking logics here gives us a whole world of stages to play in, and a progression based on seeing more of that world. Tweaks on this formula give you the platformer genre.

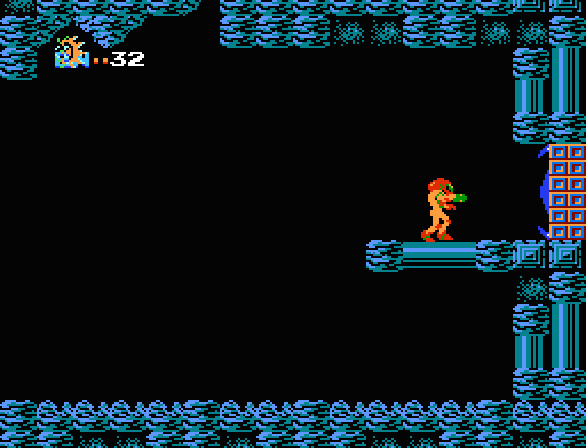

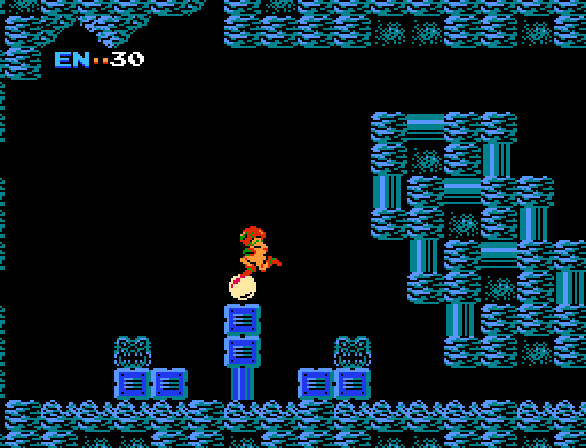

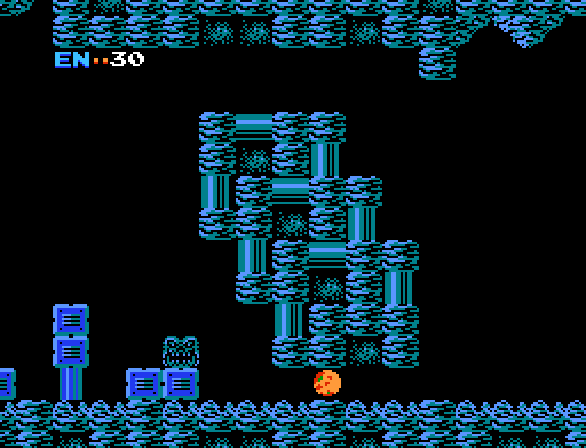

Emphasizing resources a little bit more and adding a progression scheme takes us to adventure games like Metroid:

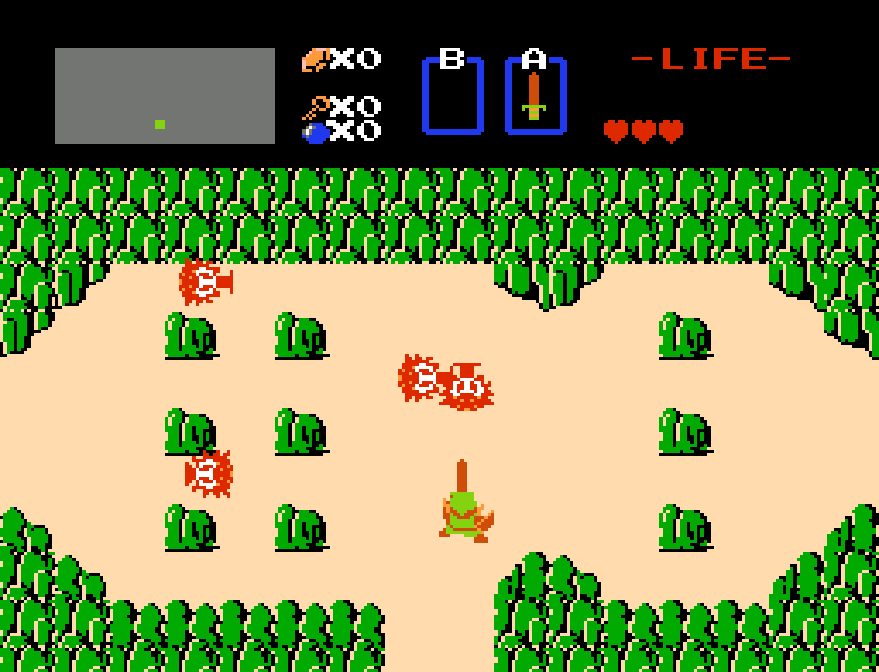

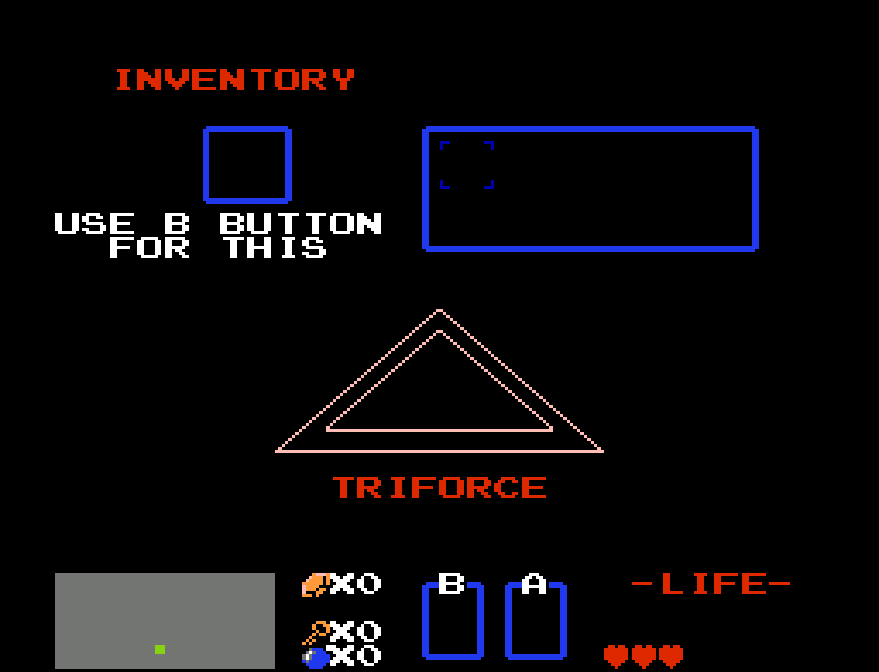

We can branch off in a couple directions from here. If we add selection logics and supplement our numeric resources into character inventories, we get to adventure games like The Legend of Zelda.

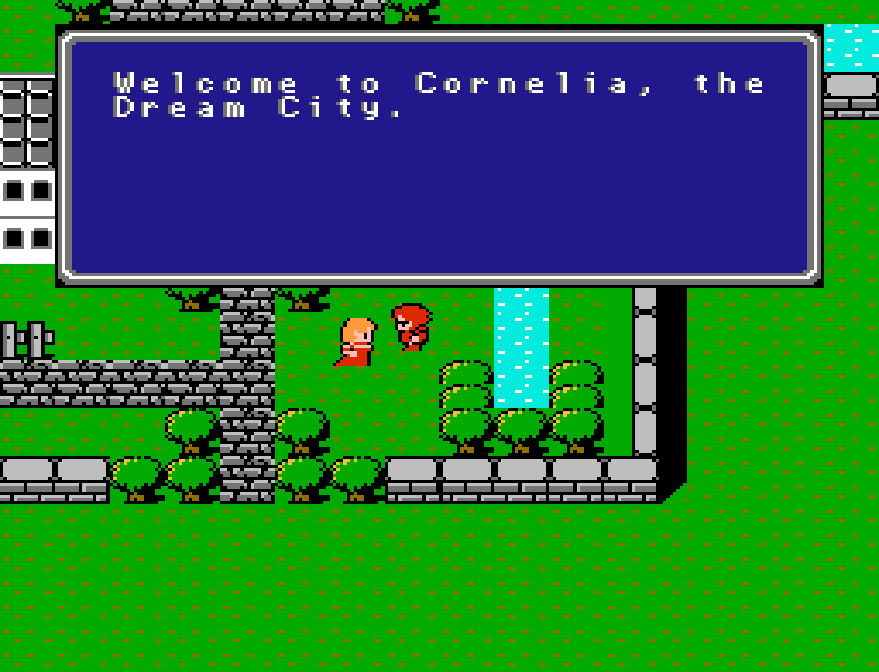

If we removed physics and made the resource and chance logics more sophisticated, we'd move towards role-playing games like Final Fantasy:

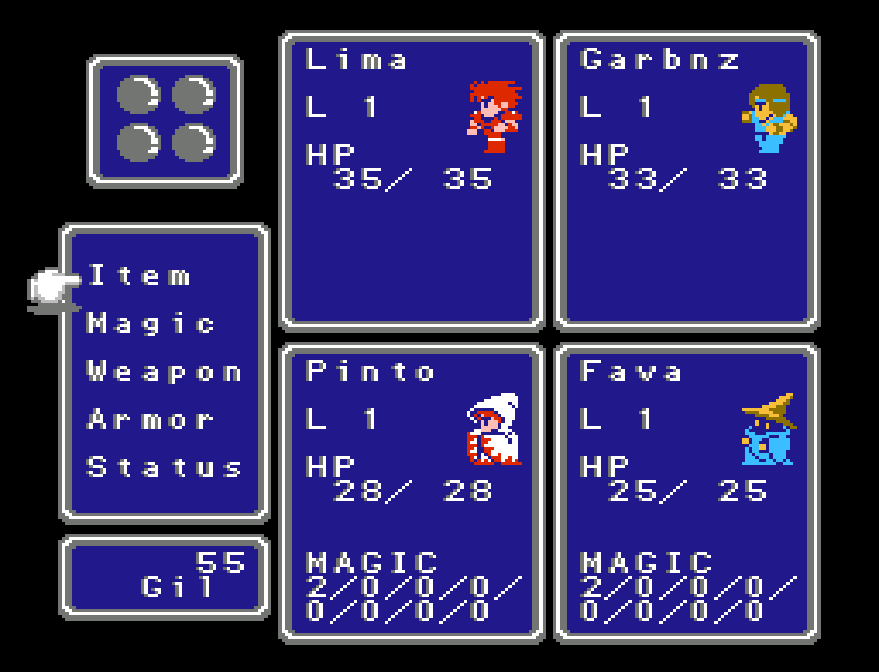

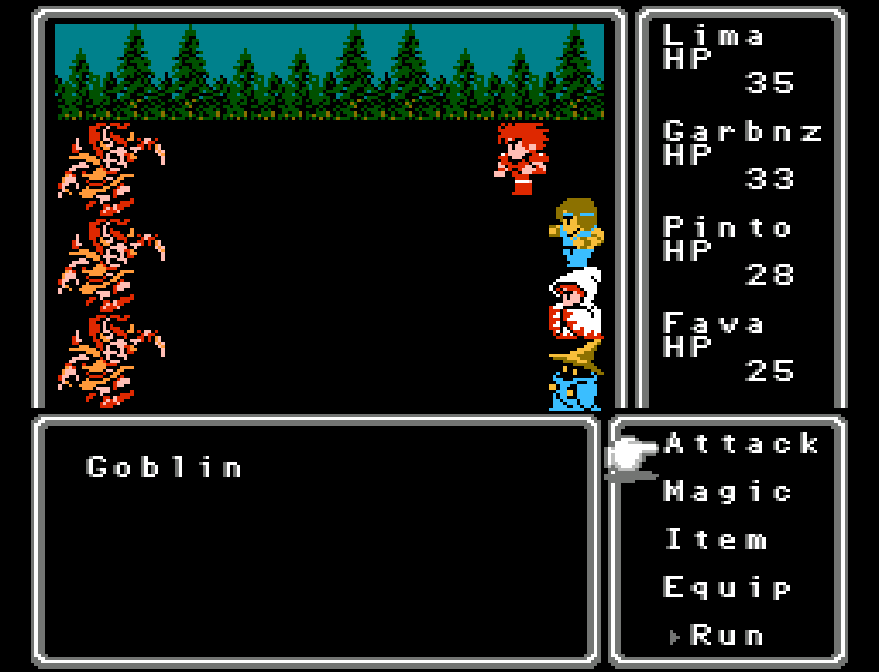

These games are split into a number of different modes, have strong progression mechanics, and make extensive use of randomization or recombination of smaller pieces. Moreover, selection logics are vital for choosing among the many moves and abilities and items used in these kinds of games:

Hopefully this progression of examples shows that genres are just conventional arrangements of logics, and within a genre we can get a lot of variety by changing the emphasis we give to one logic or another in their composition.

Here are a few helpful excerpts from the syllabus about the unit 1 text-based game, which is due at the end of week 3 (demo on 9/14, turn-ins on 9/15).

For Unit 1 you're still learning a brand new programming language, so it might be a good idea to start from a given game design and implement it as best you can. I'm suggesting a Pac-Man like game where you have a character moving around in a maze, with enemies that can defeat the player character on contact (or, to go full Pac-Man, have a special pickup that gives the player the temporary ability to defeat the enemies). If the player collects all of the items placed around the stage, they win! You could also make it so that collecting the items unlocks a door which the player must exit to win, or fill the stage with keys and locked doors. It would be great to have two kinds of enemies: one that moves towards the player, and one that moves in a different way (e.g. away from the player, or towards a point ten steps ahead of the player, or…). You can make this a turn-taking game or a real-time game. You could give the player a number of lives, with a game over triggered when they're exhausted.

Here are a few more ideas to stimulate your imagination. Each team will meet with me during week 2 to make a grading contract.

• At least two entities that move in different ways from the player
• Some kind of animation or movement over time
• At least two things the player can interact with, one of which is moving
• Some kind of interactive interface element
• A UI with two visible areas that are always visible, and one screen area that's only visible sometimes (e.g. a menu)
  • Consider the ratatui crate
• Using rust's async features
• Real-time movement or animation
• Procedural generation of text or assets
• Music/sfx; music should loop well. Consider the kira or CPAL crates.
• Title screen and polish

Grading for a unit is based on completeness and features. As a team, each project group and I will come to an agreement on what constitutes an adequate feature set.

Completing a unit means completing all of its games (the text-based unit just needs one game; the other units need two games each). Completing a game means sending me the following during the course of the unit:

• In the first two weeks of each unit (this time around, within the next week):
  • A feature plan and description of your game(s)
• At the time of the mid-unit playtest (we're skipping this for unit 1):
  • The code of the engine and games, ready for me to cargo run --release on my linux machine. If it doesn't run, I can't grade it!
  • A brief summary of how the games changed (or didn't) since the original plan, and the main things you learned so far
• Just before the end of the unit (9/14):
  • A demo of the game ready to playtest in class
• At the end of the unit (9/15):
  • The code of the engine and games
  • A trailer for your game: a 1-2 minute edited video showing off the features you hit.
  • A postmortem for your game: What features you hit, a brief description of the game, what went well, what went poorly, what you learned from playtesting, what you learned from coding it up (e.g. for your second game, how easily could you reuse code meant for the first game?).
